| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
225 pcs
|
225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Continuous Drain | |
| Diameter | |
| Height | |
| Lead Style | |
| Operating Temperature | |
| Termination Style | |
| Voltage | |
| Weight |

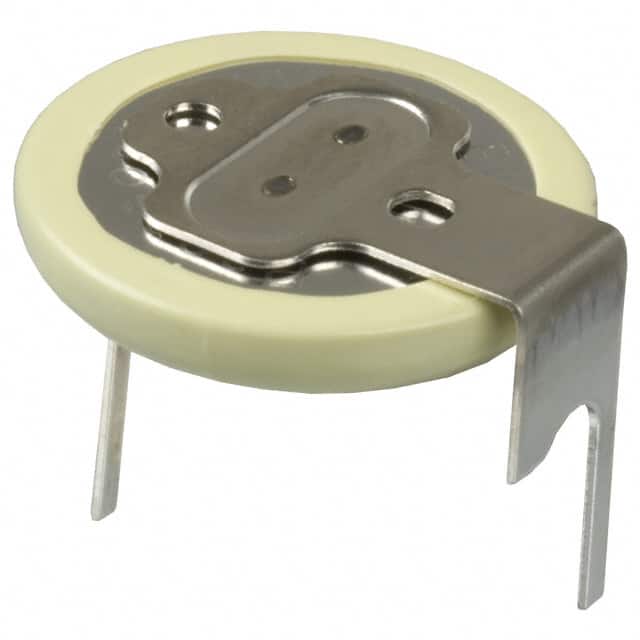

The Panasonic BR-1225/HCN is a non-rechargeable lithium poly-carbon monofluoride coin battery designed for low-drain applications requiring reliable long-term power. It delivers a nominal voltage of 3V and a nominal capacity of 48mAh, with a continuous drain current of 0.03mA.
This battery operates over a wide temperature range from -30°C to +85°C, making it suitable for environments with varying thermal conditions. Its compact dimensions of 12.5mm diameter and 2.5mm height, along with a weight of approximately 0.8g, allow for integration into space-constrained designs.
The BR-1225/HCN features a PC pin (horizontal mount) termination style, enabling direct soldering onto printed circuit boards. It is commonly used for memory backup in commercial equipment, electricity meters, security cameras, and automotive electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.72 | $1.72 |
| 20+ | $1.35 | $1.35 |
| 40+ | $1.28 | $1.28 |
| 100+ | $1.19 | $1.19 |
| 300+ | $1.09 | $1.09 |
| 720+ | $1.02 | $1.02 |
| 1,440+ | $0.96 | $0.96 |
| 2,880+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal voltage is 3V.
The nominal capacity is 48mAh.
The operating temperature range is -30°C to +85°C.
It is a coin cell with a diameter of 12.5mm and height of 2.5mm.
It uses PC Pin (Horizontal Mount) termination.
RoHS3 Compliant (unverified).
