| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Lead Style | |
| Operating Temperature (Minimum/Maximum) | |
| Size | |
| Termination Style | |
| Voltage |

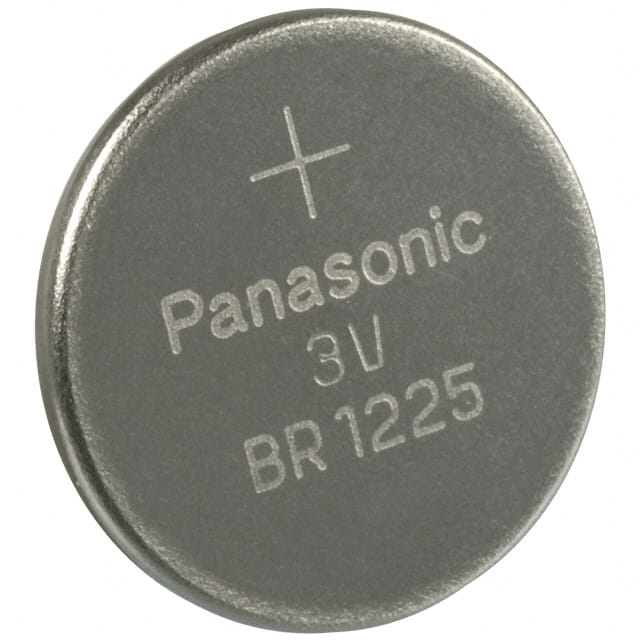

The Panasonic BR-1225 is a non-rechargeable lithium coin battery from the BR series, utilizing Lithium Poly-Carbon Monofluoride chemistry. It provides a nominal voltage of 3V and a nominal capacity of 48mAh, with a continuous drain current of 0.03mA. The battery operates over a temperature range of -30°C to +85°C. Its mechanical dimensions are 12.5mm diameter and 2.5mm height, with an approximate weight of 0.8g without tabs. The termination style requires a holder, meaning it is not soldered directly. Typical applications include memory backup for security cameras and sensors, automotive electronic components, and commercial equipment. The BR series is known for stable performance over long storage periods due to low self-discharge.
| Qty | Low | High |
|---|---|---|
| 400+ | $1.19 | $1.19 |
| 800+ | $1.15 | $1.15 |
| 1,600+ | $1.06 | $1.06 |
| 3,200+ | $1.01 | $1.01 |
| 4,800+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V.
-30°C to +85°C.
RoHS3 Compliant (unverified).
Lithium Poly-Carbon Monofluoride.
48mAh.
Coin, 12.5mm diameter, 2.5mm height.
Requires Holder.
