| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
87,000 pcs
|
87000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
35,147 pcs
|
35147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,886 pcs
|
5886 pcs | On Request | 1 | On Request | On Request | 21 | On Request | On Request | |
|
1,149 pcs
|
1149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Fault Protection | |
| Function | |
| Halogen Free | |
| Input Voltage | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package |
The Texas Instruments BQ7791506PWR is a highly integrated battery protection IC designed for multi-cell Lithium Ion/Polymer battery packs. It provides a full suite of voltage, current, and temperature protections without requiring a microcontroller. The device supports 3 to 5 series cells and features an ultra-low quiescent current of 8 µA in normal mode, making it ideal for power-sensitive applications.
Key protection features include overvoltage, undervoltage, overcurrent discharge (two levels), and short-circuit discharge. It also offers overtemperature and undertemperature protection for both charging and discharging conditions. The BQ7791506PWR includes independent charge and discharge FET drivers and a smart passive cell balancing algorithm with integrated FETs, capable of up to 50 mA balancing current. It is supplied in a 24-TSSOP surface mount package.
This device is suitable for applications such as power tools, e-bikes, and robotic cleaners, where reliable battery protection and scalability are essential. Its stackable interface allows for scaling to support battery packs from 3 to 20 series cells or more. The device is also functional safety-capable, with documentation available to aid system design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device supports 3 to 5 series Li-Ion cells. With typical overvoltage thresholds per cell, the operating voltage range is approximately 9 V to 22.875 V depending on cell configuration and threshold selection. The maximum input voltage is 25 V.

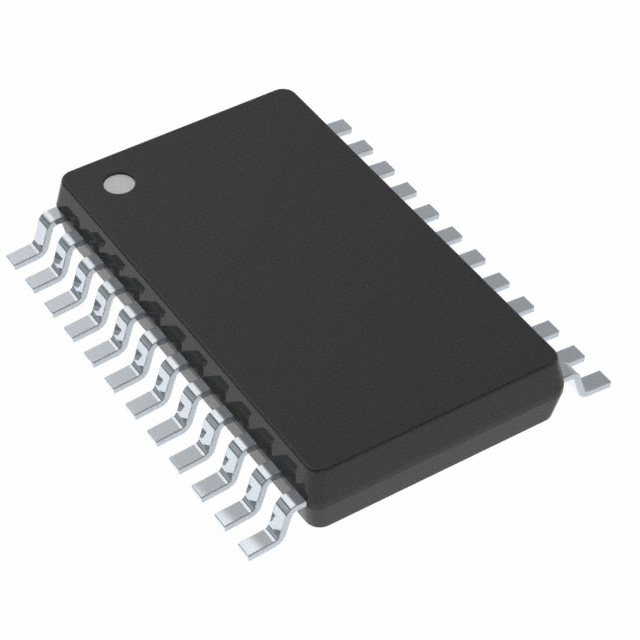

24-TSSOP (Thin Shrink Small Outline Package) with 0.173 inch width, surface mount.
The BQ7791506PWR operates from -40°C to 85°C.
Overvoltage, undervoltage, two-level overcurrent discharge, short-circuit discharge, and overtemperature protection for both charge and discharge cycles.
8 µA in normal mode.
The BQ7791506PWR is designed for 3 to 5 series Li-Ion cells.
Yes, with integrated FETs providing up to 50 mA balancing current.
