| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
196 pcs
|
196 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present |
The BQ51051BYFPT from Texas Instruments is a single-stage wireless power receiver and Li-Ion/Li-Pol battery charger designed for portable applications. It integrates the wireless power receiver, rectifier, and battery charger into a single, compact package.
Key electrical specifications include output voltage options of 4.20V, 4.35V, and 4.40V, with support for charging currents up to 1.5A. The device boasts a peak AC-DC charging efficiency of 93% and can tolerate a maximum input voltage of 20V, incorporating input overvoltage protection. It also features thermal shutdown and overcurrent protection.

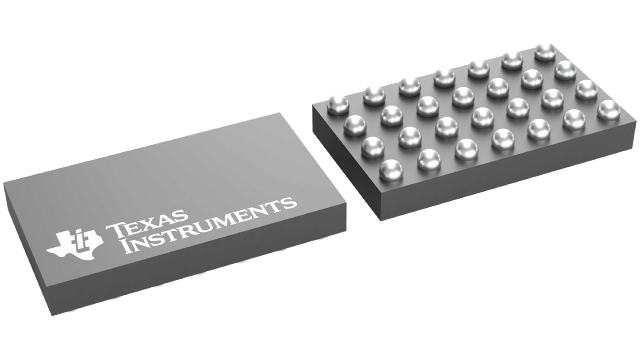

This receiver is compatible with the WPC v1.2 Qi industry standard. The power stage output tracks the rectifier and battery voltage to ensure maximum efficiency across the full charge cycle. The BQ51051BYFPT is available in a small DSBGA (YFP) package, suitable for surface mounting.
Its robust architecture and integrated features make it ideal for applications requiring efficient and safe wireless charging of Li-ion and Li-Pol batteries.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BQ51051BYFPT offers output voltage options of 4.20V, 4.35V, and 4.40V.
The BQ51051BYFPT supports a charging current up to 1.5 A.
The BQ51051BYFPT has a peak AC-DC charging efficiency of 93%.
The BQ51051BYFPT operates in a temperature range of 0°C to 125°C.
The BQ51051BYFPT is available in a DSBGA (YFP) package.
The BQ51051BYFPT is listed as RoHS3 Compliant.
The BQ51051BYFPT has an MSL rating of Level 1.
