BQ51013YFFR
Texas Instruments
The Texas Instruments BQ51013YFFR is an integrated wireless power receiver IC. It operates with an input voltage range of 4V to 10V and provides a regulated 5V output at up to 1.5A.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34,769 pcs
|
34769 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,120 pcs
|
8120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,846 pcs
|
7846 pcs | On Request | 1 | On Request | On Request | 13 | On Request | On Request | |
|
1,306 pcs
|
1306 pcs | On Request | 1 | On Request | On Request | 1501+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Supplier Device Package | |
| Voltage |
The BQ51013BYFPR from Texas Instruments is a single-chip, advanced, flexible, secondary-side device for wireless power transfer in portable applications, capable of providing up to 5 W. This IC provides the receiver (RX) AC-to-DC power conversion and regulation while integrating the digital control required to comply with the Wireless Power Consortium (WPC) Qi v1.2 communication protocol.
Key electrical specifications include an input voltage range of 4V to 10V, an absolute maximum input voltage of 20V, and an output current of 1.5A. The device operates within a temperature range of 0°C to 125°C. It boasts a peak AC-DC efficiency of 93% and features a full synchronous rectifier.
The BQ51013BYFPR is designed for wireless power supply solutions and enables a complete contactless power transfer system when paired with a primary-side controller like the BQ50012A. It is available in a 28-DSBGA package and supports surface mount.
This device complies with WPC v1.2 standards, including Foreign Object Detection (FOD). It offers highly accurate current sense, dynamic rectifier control for improved load transient response, and dynamic efficiency scaling for optimized performance over a wide range of output power.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.58 | $1.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4V to 10V.

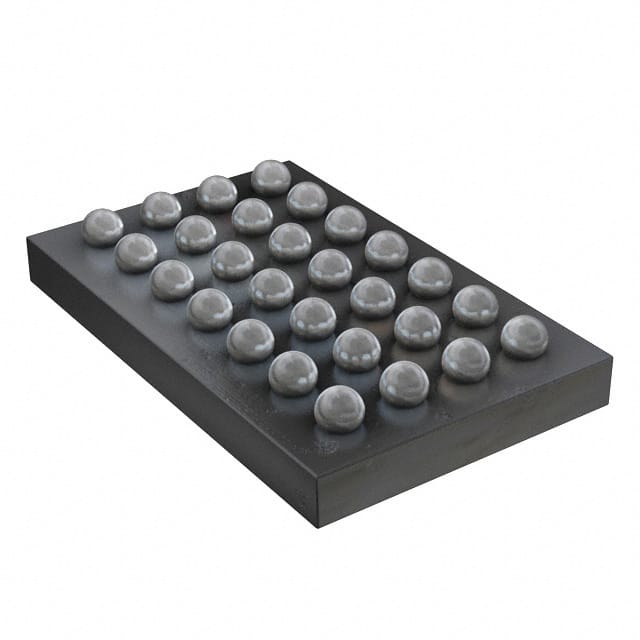

The BQ51013BYFPR is available in a 28-DSBGA (28-XFBGA, DSBGA) package for surface mount.
The operating temperature range is 0°C to 125°C.
The output current rating is 1.5A.
The peak AC-DC efficiency is 93%.
The device can provide up to 5W of wireless power.
The BQ51013C is a drop-in replacement with upgraded functionality and supports WPC 1.3 standard.
