Mfr Part #:

BQ3285S

Mfr Name: BenchPro

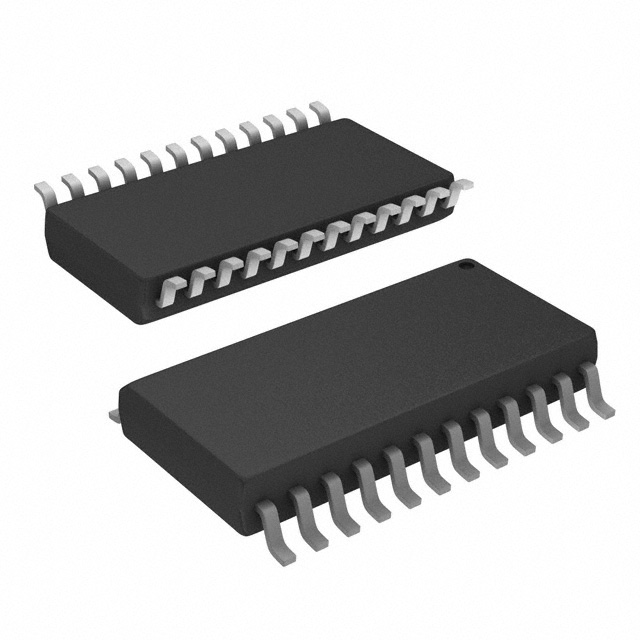

The BenchPro BQ3285S is a Real-Time Clock (RTC) IC with a Parallel interface. It operates from 4.5V to 5.5V and has an operating temperature range of 0°C to 70°C.

✓ Total Stock: 53 pcs

$ Price Range: $2.13

BQ3285S Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	53 pcs On Request	53 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BQ3285S Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	BenchPro
Features	Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
Interface	Parallel
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 70°C
Voltage Rating	4.5V ~ 5.5V

View Similar Products (0)

BQ3285S Description

Short technical summary and product information.

The BenchPro BQ3285S is an integrated circuit designed for clock and calendar functions. It features a Parallel interface for data communication and supports both 12/24 hour time formats and YY-MM-DD-dd date formats. The device operates within a supply voltage range of 4.5V to 5.5V, with a separate battery voltage range of 2.5V to 4V.

Key features include alarm functionality, Daylight Saving Time support, Leap Year calculation, and NVSRAM for data retention. It also offers a Square Wave Output. The operating temperature range is from 0°C to 70°C. The component is housed in a 24-SOIC package and is available on Tape & Reel.

This RTC IC is suitable for applications requiring accurate timekeeping and date tracking. Its robust feature set makes it a versatile component for various embedded systems and electronic designs.

BQ3285S Quick Information

Product Type: Real-Time Clock

Canonical Name: BQ3285S Real-Time Clock IC

Subcategory: Clock/Calendar

BQ3285S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BQ3285S Estimated Pricing

Qty	Low	High
1+	$2.13	$2.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

BQ3285S Features

Real-Time Clock with Calendar functions.
Parallel interface for data communication.
Supports 12/24 hour and YY-MM-DD-dd formats.
Operates from 4.5V to 5.5V supply.
0°C to 70°C operating temperature range.

BQ3285S Applications

Ideal for timekeeping in embedded systems.
Suitable for date tracking applications.
Used in systems requiring alarm functions.
Supports Daylight Saving Time adjustments.

BQ3285S FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the BQ3285S?

The operating voltage is 4.5V to 5.5V.

What is the operating temperature range of the BQ3285S?

The operating temperature range is 0°C to 70°C.

What type of interface does the BQ3285S use?

The BQ3285S uses a Parallel interface.

What are the key features of the BQ3285S?

Key features include Alarm, Daylight Savings, Leap Year, NVSRAM, and Square Wave Output.

What is the package type for the BQ3285S?

The package type is 24-SOIC.

Is the BQ3285S RoHS compliant?

The RoHS status is RoHS3 Compliant.
