BQ27Z561YPHR-R1

The Texas Instruments BQ27Z561-R1 is an active battery gas gauge IC utilizing the Impedance Track™ algorithm for precise fuel gauging in single-series Li-ion and Li-Polymer battery packs. It supports cell chemistries including LiFePO4 and offers a wide battery capacity range from 100 mAh to 32,000 mAh.

Key electrical specifications include support for HDQ and I2C communication interfaces, a low-voltage operation down to 2V, and a wide current range from 1mA to over 5A. The device features a high-accuracy coulomb counter with an input offset error of less than 1 µV typical. Sophisticated charge algorithms like JEITA and enhanced charging are supported, along with RSOC charging compensation.

For enhanced security, the BQ27Z561-R1 incorporates SHA-256 authentication. It also includes diagnostic features such as a lifetime data monitor and a black box recorder. The operating temperature range is from -40°C to 85°C.

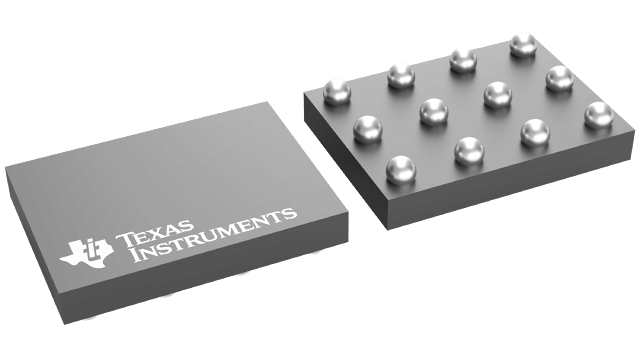

Packaged in a compact 12-pin DSBGA (YPH) format, this IC is suitable for space-constrained applications. It supports both high-side and low-side current sense resistors down to 1mΩ and offers features like an enhanced state of health (SOH) algorithm and a fast QMAX update option.
