| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,272 pcs
|
9272 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Battery Pack Voltage | |
| Charge Current | |
| Current | |
| Fault Protection | |
| Interface | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Texas Instruments BQ25790YBGR is a highly integrated, switch-mode buck-boost battery charger designed for 1-4 cell Li-ion and Li-polymer batteries. It offers flexible control via I2C and supports autonomous operation.
Key electrical specifications include a maximum charging current of 5A with 10mA resolution, a wide input operating voltage range from 3.6V to 24V (30V absolute maximum), and a maximum battery pack voltage of 18.8V. The device features programmable switching frequencies of 750kHz and 1.5MHz, and provides high efficiency, reaching 96.5% with a 9V input at 3A charge current.
This charger supports USB Power Delivery 3.0 OTG output with a voltage range of 2.8V to 22V and current regulation up to 3.32A. It integrates essential features like input and charging current sensing, four switching MOSFETs, and a BATFET. Safety features include over-current, over-temperature, over-voltage, and short-circuit protection.
The BQ25790YBGR is supplied in a compact 56-DSBGA package suitable for surface mounting. Its operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.90 | $2.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.

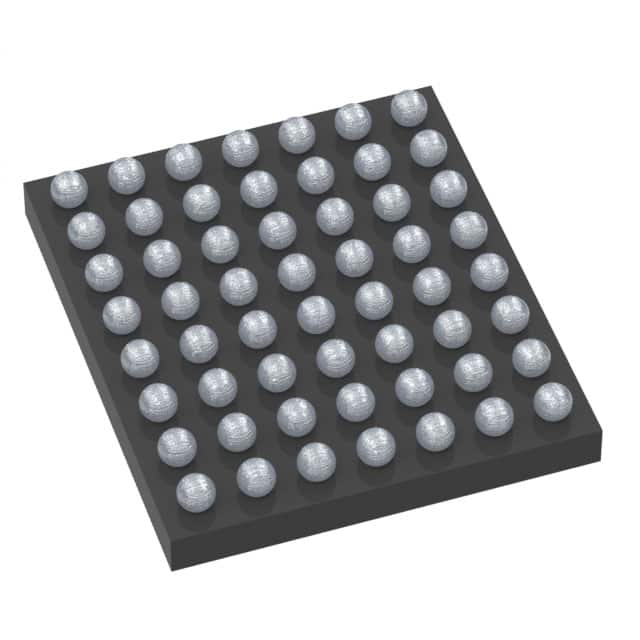

The BQ25790YBGR is available in a 56-XFBGA, DSBGA package, specifically a 56-DSBGA (2.9 x 3.32 mm) package.
The operating temperature range is -40°C to 85°C.
The maximum charging current is 5 A with a resolution of 10 mA.
The input voltage range is from 3.6 V to 24 V, with an absolute maximum rating of 30 V.
It supports Lithium Ion/Polymer batteries with 1 to 4 series cells.
Fault protections include over current, over temperature, over voltage, reverse battery, and short circuit.
The charging efficiency is up to 96.5% typical with 9 V input at 3 A charge current, and 94.5% with 15 V input.
