BQ25713RSNR The Texas Instruments BQ25713RSNR is an I2C controlled, 1-4 cell NVDC buck-boost battery charge controller. It supports input voltages from 3.5V to 24V and a maximum charge current of 8.128A.
Mfr Part #:

BQ25713RSNR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments BQ25713RSNR is an I2C controlled, 1-4 cell NVDC buck-boost battery charge controller. It supports input voltages from 3.5V to 24V and a maximum charge current of 8.128A.
✓ Total Stock: 75,904 pcs
$ Price Range: $1.42

BQ25713RSNR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
74,098 pcs
On Request
74098 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,420 pcs
On Request
1420 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
256 pcs
On Request
256 pcs On Request 1 On Request On Request 21 On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
130 pcs
On Request
130 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BQ25713RSNR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Chemistry
Fault Protection
Function
Interface
Mounting Type
Number of Cells
Operating Temperature
Supplier Device Package
Supplier Package
View Similar Products (0)

BQ25713RSNR Description

Short technical summary and product information.

The BQ25713RSNR from Texas Instruments is an advanced battery charge controller designed for 1 to 4 series cell battery configurations. It features an I2C interface for control and monitoring, enabling narrow voltage DC (NVDC) buck-boost operation.



This IC supports a wide input voltage range from 3.5V to 24V, making it versatile for various power sources, including USB Type-C and USB Power Delivery. It offers a maximum charge current of 8.128A and includes features like Input Current Optimization (ICO), Input Voltage Regulation (VINDPM), and Input Current Limit (IINDPM) to maximize input power and protect the system.



The BQ25713RSNR is suitable for applications requiring flexible battery charging and system power management. Its switch-mode buck-boost topology ensures efficient power conversion. The device operates within an industrial temperature range of -40°C to 85°C.

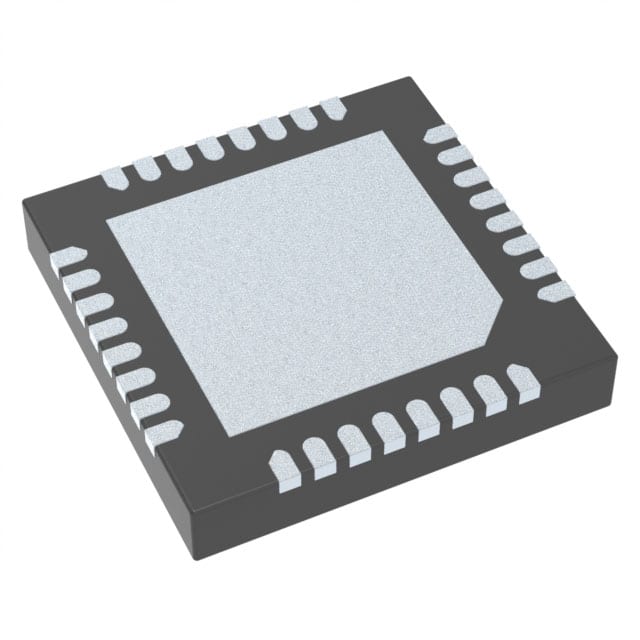

Packaged in a 32-QFN (4x4) surface-mount form factor, the BQ25713RSNR is designed for integration into compact electronic devices. It supports multiple battery chemistries including Lead Acid, Li-Ion/Li-Polymer, Lithium Phosphate/LiFePO4, NiCd, NiMH, and SuperCap.

BQ25713RSNR Quick Information

Product Type: Battery Management IC
Canonical Name: BQ25713RSNR I2C Narrow VDC Buck-Boost Battery Charge Controller
Subcategory: Battery Management ICs

BQ25713RSNR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BQ25713RSNR Estimated Pricing

Qty Low High
1+ $1.42 $1.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

BQ25713RSNR Features

  • I2C controlled 1-4 cell battery charge controller.
  • Supports 3.5V to 24V input voltage range.
  • Maximum charge current of 8.128A.
  • NVDC buck-boost topology for efficient power.
  • Wide range of battery chemistry support.

BQ25713RSNR Applications

  • Ideal for portable electronic devices.
  • Suitable for USB Type-C power delivery.
  • Used in battery-powered systems.
  • Enables flexible power management solutions.

BQ25713RSNR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the BQ25713RSNR?

The BQ25713RSNR supports an input voltage range from 3.5V to 24V.

What is the maximum charge current for this battery charge controller?

The maximum charge current for the BQ25713RSNR is 8.128A.

How many battery cells can the BQ25713RSNR manage?

It can manage 1 to 4 series cells.

What battery chemistries are supported by the BQ25713RSNR?

It supports Lead Acid, Li-Ion/Li-Polymer, Lithium Phosphate/LiFePO4, NiCd, NiMH, and SuperCap chemistries.

What is the operating temperature range of the BQ25713RSNR?

The operating temperature range is -40°C to 85°C.

What type of package is the BQ25713RSNR in?

It is supplied in a 32-QFN (4x4) package with surface mount type.
