| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
370 pcs
|
370 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Battery Pack Voltage | |
| Charge Current | |
| Current | |
| Fault Protection | |
| Interface | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Voltage |
The BQ24156BYFFR from Texas Instruments is an integrated circuit designed for battery charging applications. This component is suitable for single-cell Lithium Ion/Polymer battery chemistries.
Key electrical specifications include a maximum supply voltage of 9V and a maximum battery pack voltage of 4.44V. The device supports a programmable charge current up to 1.5A, with constant current programmability. It features an I2C interface for control and communication, along with fault protection for over-temperature and over-voltage conditions.

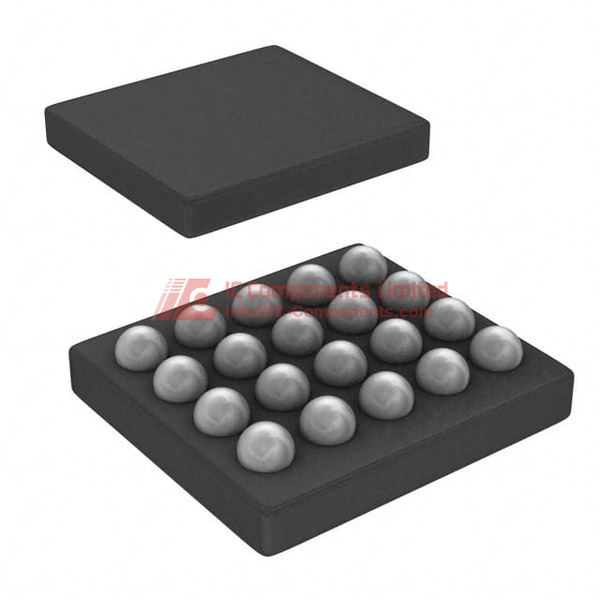

The BQ24156BYFFR is available in a 20-DSBGA package and is designed for surface mount installation. The operating temperature range is -30°C to 85°C (TA). This component is part of the Power Management IC category, specifically for battery chargers.
This part is identified by the manufacturer part number BQ24156BYFFR and is manufactured by Texas Instruments. It is supplied in a 20-UFBGA, DSBGA package, typically on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum supply voltage is 9V.
It supports Lithium Ion/Polymer batteries.
The maximum programmable charge current is 1.5A.
The package is 20-DSBGA.
It is a surface mount device.
The operating temperature range is -30°C to 85°C (TA).
It uses an I²C interface.
