| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,500 pcs
|
17500 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Area | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage | |
| Spectral Range | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

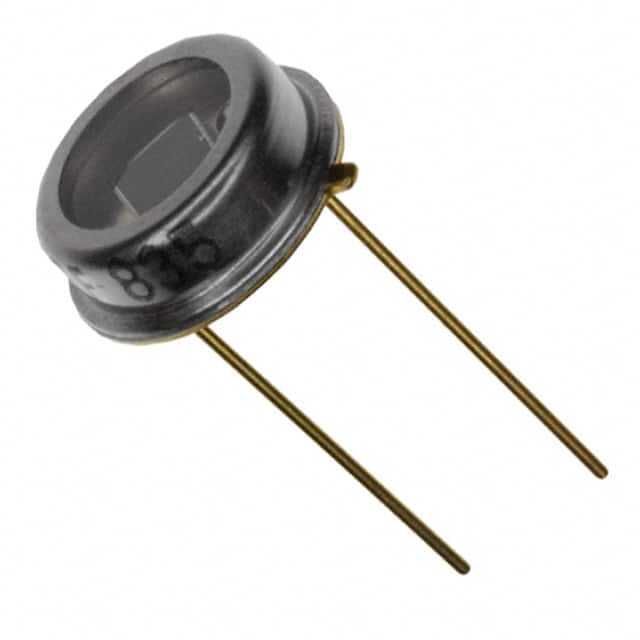

The BPW20RF is a planar Silicon PN photodiode from Vishay Dale, housed in a hermetically sealed TO-5 case. It is specifically engineered for high precision linear applications, offering a short circuit photocurrent that remains linear over seven decades of illumination. The device exhibits a strictly logarithmic correlation between open circuit voltage and illumination over the same range.
Key electrical specifications include a reverse voltage rating of 10V and a dark current of 2nA. Its spectral range spans from 550nm to 1040nm, with a peak sensitivity at 920nm, making it suitable for visible and near infrared radiation. The photodiode has an active area of 7.5mm² and a viewing angle of 100°.
Designed for through-hole mounting, the BPW20RF comes in a radial, lensed metal can package with 2 leads. Its operating temperature range is -40°C to 125°C. The photodiode is compliant with RoHS3 directives and has an MSL rating of 1.
Applications include use as a sensor for light measuring techniques in cameras, photometers, color analyzers, and exposure meters, as well as in various medical and industrial measuring and control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse voltage rating for the BPW20RF photodiode is 10 V.
The dark current of the BPW20RF photodiode is 2 nA.
The spectral range of the BPW20RF photodiode is 550 nm to 1040 nm.
The active area of the BPW20RF photodiode is 7.5 mm².
The operating temperature range for the BPW20RF photodiode is -40°C to 125°C.
The BPW20RF photodiode is mounted using the through-hole method.
