| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

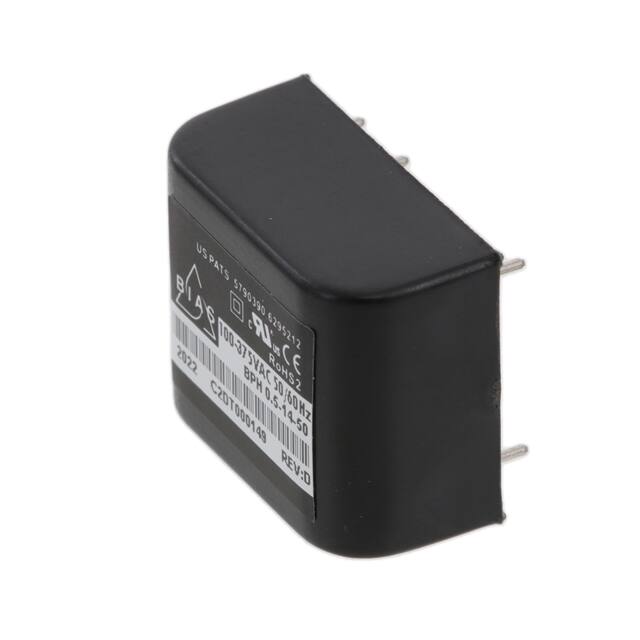

The BPH-0.5-14-50 from Cita Technologies, LLC. is a compact, enclosed AC/DC power supply module designed for board mounting. It features a wide universal input voltage range of 100-375 VAC, making it suitable for global applications. This series offers dual outputs, providing both 14 VDC and 5 VDC with respective currents of 36mA and 28mA, totaling 0.5W of output power.
The module operates efficiently within a temperature range of -30°C to +70°C without de-rating, ensuring reliable performance across various environmental conditions. It boasts 3000 VAC isolation and meets EN 55022 Class B and FCC Part 15 Class B standards for electromagnetic interference.
Designed for ITE (Commercial) applications, the BPH-0.5-14-50 is mounted via through-hole technology and comes in a 7-DIP module package. Its small size and robust specifications make it a versatile component for intelligent control devices and low-power wireless applications.
The BPH-0.5-14-50 provides dual outputs of 14 VDC and 5 VDC.
The input voltage range is 100-375 VAC.
The operating temperature range is -30°C to 70°C.
It is a 7-DIP module package.
It is mounted using the through hole method.
The isolation voltage rating is 3000 VAC.
