| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Efficiency | |
| Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power | |
| Type | |
| Voltage |

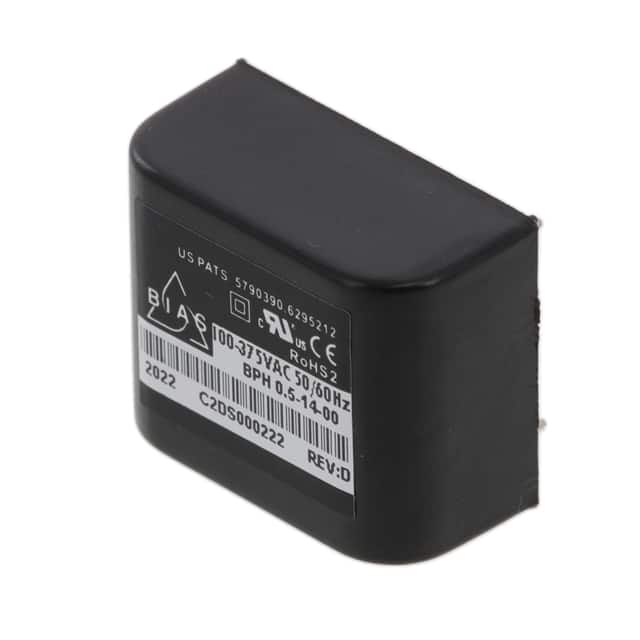

The BPH-0.5-14-00 from Cita Technologies, LLC. is a compact AC/DC power supply module designed for board mounting. It operates with a universal input voltage range of 100 to 375 VAC at 50/60Hz, delivering a regulated 14V output with a power rating of 0.5W. This series offers no de-rating across its operating temperature range of -30°C to 70°C.
Key features include 3000 VAC isolation and a constant power mode, which provides inherent protection against overloads and short circuits. The module is designed for through-hole mounting and comes in a 7-DIP module package. Its efficiency is rated at 70%.
This power supply is suitable for ITE (Commercial) applications and complies with safety standards such as CB and cURus. The small size and robust operating characteristics make it a versatile component for various electronic designs requiring a reliable, isolated DC power source.
100 to 375 VAC.
14 VDC.
7-DIP Module.
-30°C to 70°C.
70%.
3000 VAC.
27.9mm x 23.2mm x 14.0mm.
