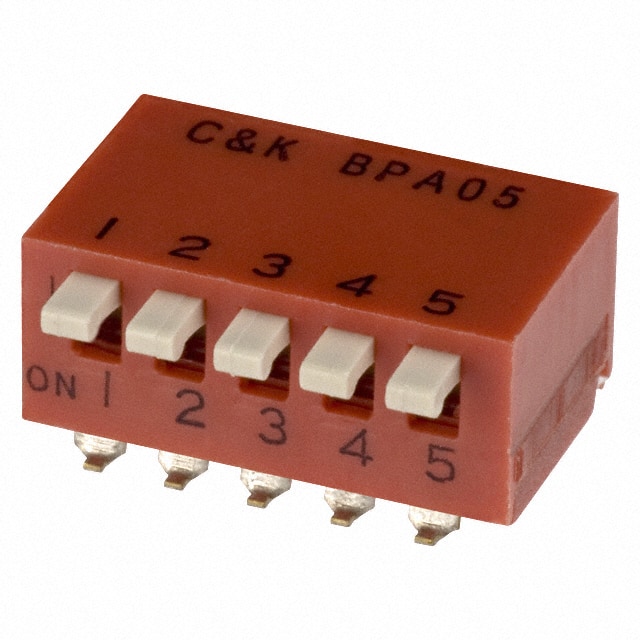

BPA05SK The C&K Components BPA05SK is a Piano Actuator DIP Switch with SPST circuitry. It features a 5VDC voltage rating and 100mA current rating.
Mfr Part #:

BPA05SK

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components BPA05SK is a Piano Actuator DIP Switch with SPST circuitry. It features a 5VDC voltage rating and 100mA current rating.
✓ Total Stock: 73 pcs
$ Price Range: $0.75

BPA05SK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
73 pcs
On Request
73 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BPA05SK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Height Above Board
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

BPA05SK Description

Short technical summary and product information.

The C&K Components BPA05SK is a SPST (Single Pole Single Throw) DIP Switch designed for surface mount applications with a right-angle orientation. It features a piano-style actuator and a gull wing termination style.



This switch operates within a temperature range of -20°C to 85°C and is rated for 5VDC with a current carrying capacity of 100mA. The contact material is Phosphor Bronze with a Tin finish. The pitch is 2.54mm (0.100"). The height above the board is 6.95mm (0.274").



It is washable and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected, and the RoHS status is RoHS3 Compliant.

BPA05SK Quick Information

Product Type: DIP Switch
Canonical Name: C&K Components BPA05SK SPST DIP Switch
Subcategory: DIP Switch

BPA05SK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BPA05SK Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

BPA05SK Features

  • SPST circuit configuration.
  • Piano actuator type.
  • Surface Mount, Right Angle mounting.
  • Rated for 5VDC and 100mA.
  • Washable design.

BPA05SK Applications

  • Suitable for low-current switching applications.
  • Ideal for control panels and instrumentation.
  • Used in electronic devices requiring surface mounting.
  • Applicable in environments with -20°C to 85°C temperature range.
  • Suitable for applications requiring washable switches.

BPA05SK FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the BPA05SK?

-20°C to 85°C

What is the voltage and current rating for this DIP switch?

The BPA05SK is rated for 5VDC and 100mA.

What type of actuator does the BPA05SK have?

It features a Piano actuator.

How is the BPA05SK mounted?

It is a Surface Mount, Right Angle type.

What is the pitch of the BPA05SK switch?

The pitch is 2.54mm (0.100").
