| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
220 pcs
|
220 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Height Above Board | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Washable |

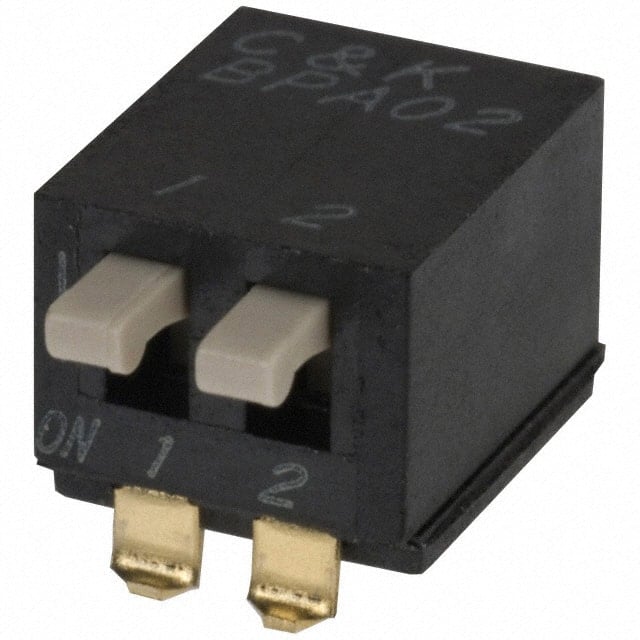

The C&K Components BPA02SB is a side-actuated DIP switch from the BPA series, suitable for applications such as address switching in industrial controls and logic switching in computers and peripherals. It features a single-pole, single-throw (SPST) configuration with two positions.
This switch is designed for surface mounting with a right-angle termination style, utilizing gull wing leads. It operates at a voltage rating of 5VDC and a current rating of 100mA. The contact material is Beryllium Copper with Gold plating, and the body is made of Polyphenylene Sulfide (PPS).
The operating temperature range for the BPA02SB is -20°C to 85°C. It is also specified as washable, with a mechanical and electrical life of 1,000 cycles minimum. The pitch between terminals is 2.54mm (0.100").
Key specifications include a contact resistance of 50 milliohms initial maximum and an insulation resistance of 100 megohms minimum at 100 VDC. The dielectric withstand voltage is 300 VAC for 1 minute. The actuator type is piano with a raised level.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the BPA02SB switch is -20°C to 85°C.
The contact rating is 100mA maximum at 5VDC or 25mA maximum at 24VDC.
The mechanical and electrical life is a minimum of 1,000 cycles at 5 VDC and 10mA.
The pitch of the BPA02SB switch is 2.54mm (0.100").
The BPA02SB switch is RoHS3 Compliant.
