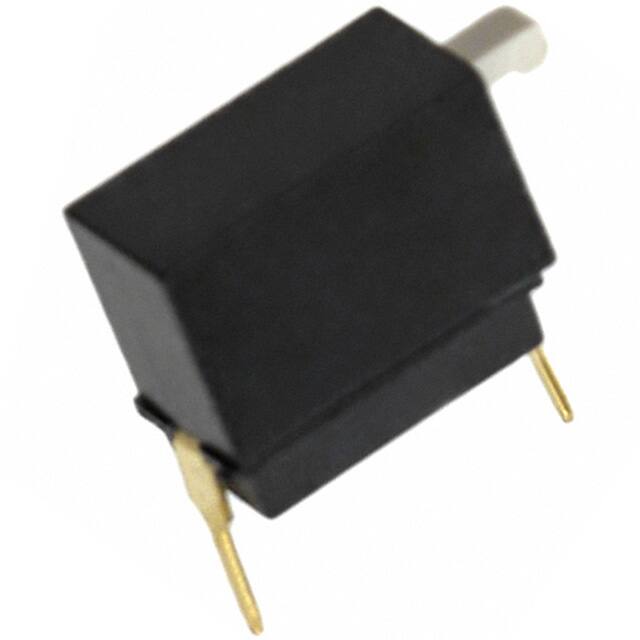

The C&K Components BPA01B is a side-actuated DIP switch from the BPA series, suitable for industrial controls, address switching, logic switching in computers and peripherals, and function controlling. This model features an SPST (Single Pole Single Throw) circuit configuration with 1 position.
Key electrical specifications include a contact rating of 100 mA max. at 5 VDC or 25 mA max. at 24 VDC, and an operating voltage rating of 5 VDC. The switch offers a contact resistance of 50 milliohms initial max. and an insulation resistance of 100 megohms min. at 100 VDC. It has a dielectric withstand voltage of 300 VAC for 1 minute.
Mechanically, the BPA01B has a pitch of 2.54mm (0.100"), a through-hole, right-angle mounting type, and a PC pin termination style. The actuator is a piano-style, raised type. The switch is rated for 1,000 cycles minimum mechanical and electrical life.
Environmental characteristics include an operating temperature range of -20°C to 85°C and a storage temperature range of -40°C to 85°C. The housing and cover are made of PPS (black, UV 94 V-0), the actuator is PA-6T (UL 94 V-0), and the contacts and terminals are Beryllium Copper and Brass respectively, both with Gold over Nickel plating. This switch is washable and flow solderable.
The BPA01B is supplied in rigid dispensing tubes. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BPA01B switch operates at a nominal voltage of 5VDC.
The contact rating is 100mA at 5VDC and 25mA at 24VDC.
It uses through-hole mounting with a right-angle orientation.
Yes, it is washable and flow solderable.
It has a minimum mechanical and electrical life of 1,000 cycles.
