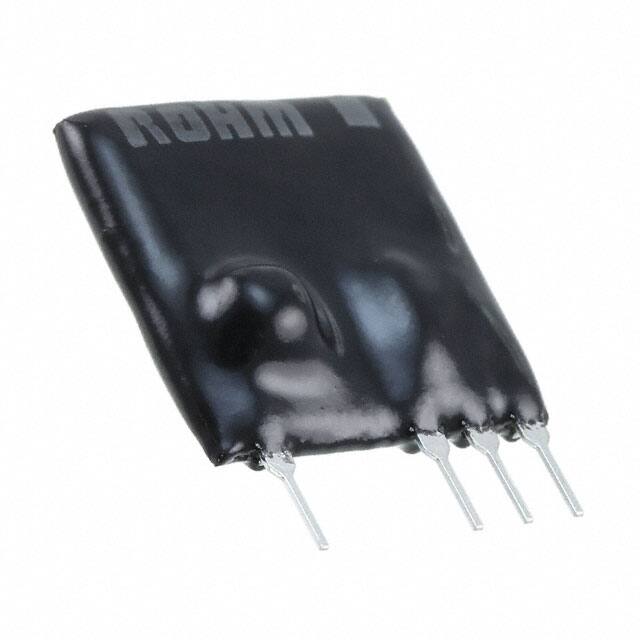

The ROHM Semiconductor BP5728 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a current capability of 1A, delivering a total power of 12W. The converter accepts a wide input voltage range of 80 to 286 VAC, offering flexibility in power source selection.
This component is designed for through-hole mounting and comes in a 6-SIP module package with 4 leads. It operates within a temperature range of -25°C to 80°C, with derating applied at higher temperatures. The BP5728 is specified as RoHS3 Compliant and has an MSL rating of 1.
Key specifications include a maximum power dissipation of 6W and a maximum output current of 500mA, which conflicts with the 1A rating from other sources. The input voltage range also shows discrepancies between sources, with one indicating 80-286 VAC and another 119-405V. It is recommended to consult the datasheet for precise specifications.
This AC/DC converter is suitable for various commercial applications requiring a stable 12V power supply. Its enclosed design and through-hole mounting facilitate integration into electronic systems.
The output voltage is 12V.
There are conflicting specifications for the maximum output current, with one source stating 1A and another stating 500mA.
The power rating is 12W.
There are conflicting specifications for the input voltage range, with one source indicating 80-286 VAC and another 119-405V.
It is designed for through-hole mounting.
The operating temperature range is -25°C to 80°C, with derating applied.
The package type is a 6-SIP module with 4 leads.
