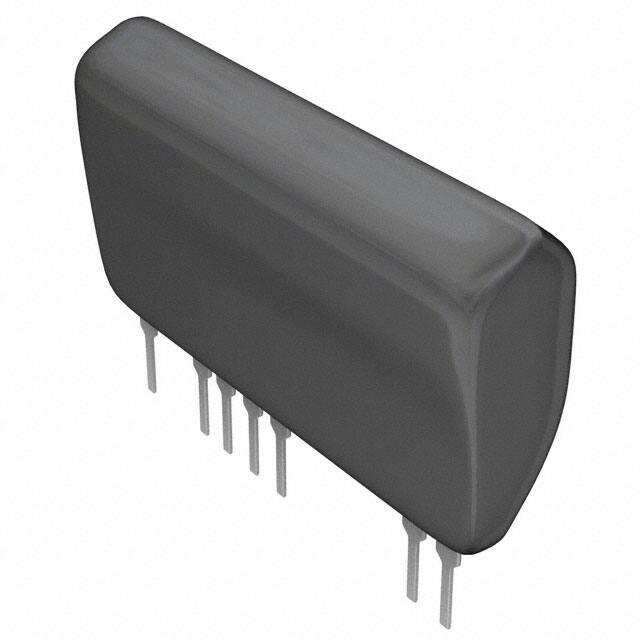

The BP5722A12 is an isolated AC/DC converter from ROHM Semiconductor designed for board-mount applications. It delivers a regulated 12V output at up to 1A (12W typical, 13W max) from an input voltage range of 154 to 286 VAC. The converter achieves typical efficiency of 83% with a minimum of 75%.
Key electrical characteristics include line regulation of 8mV typical (200mV max) and load regulation of 30mV typical (200mV max). Output ripple voltage is 200mVpp typical (500mVpp max). The module provides 2.5kV isolation between primary and secondary sides.
The device comes in an 11-SIP through-hole package measuring 32.5mm x 9.5mm x 21.5mm. It operates over a temperature range of -25°C to 80°C with derating, and storage temperature from -40°C to 105°C. The surface temperature limit is 105°C including self-heating.
Typical applications include ITE (commercial) equipment, industrial power supplies, and other general-purpose AC/DC conversion needs.
The input voltage range is 154 to 286 VAC.
The output voltage is 12V typical (11.4V min, 12.6V max) and the output current is 1A typical (0 to 1000 mA range).
The package is an 11-SIP module with 7 leads and through-hole mounting.
The operating temperature range is -25°C to 80°C with derating.
The part is listed as RoHS3 Compliant, but this status is unverified and should be reviewed.
The typical efficiency is 83% with a minimum of 75%.
The isolation voltage is 2.5kV between primary and secondary (1 second test).
