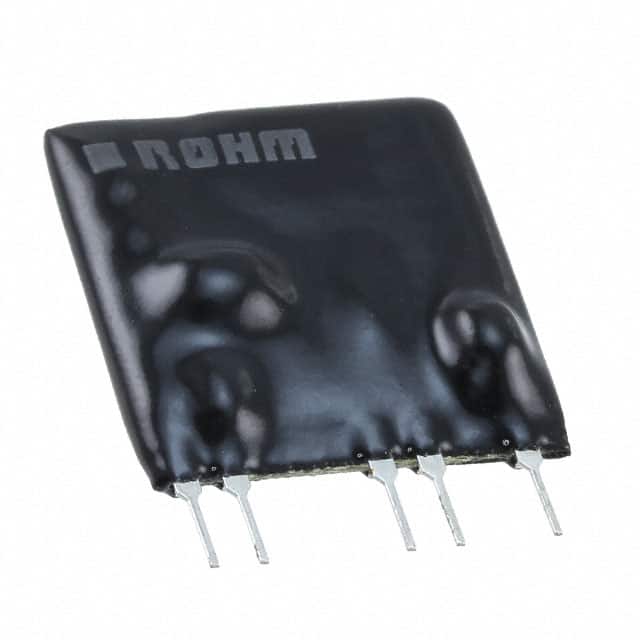

The ROHM Semiconductor BP5716 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It features a power rating of 12W and an output current of 1A.
This converter operates within an input voltage range of 80 to 120 VAC. It is housed in an 8-SIP module with 5 leads and is designed for through-hole mounting.
Key specifications include a length of 24.0mm, width of 10.1mm, and height of 25.5mm. The operating temperature range is -25°C to 80°C with derating. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The input voltage range is 80 to 120VAC.
The package is an 8-SIP Module with 5 leads.
The operating temperature range is -25°C to 80°C with derating.
The output current is 1A.
The output power is 12W.
The mounting type is through hole.
The dimensions are 24.0mm (length) x 10.1mm (width) x 25.5mm (height).
