| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

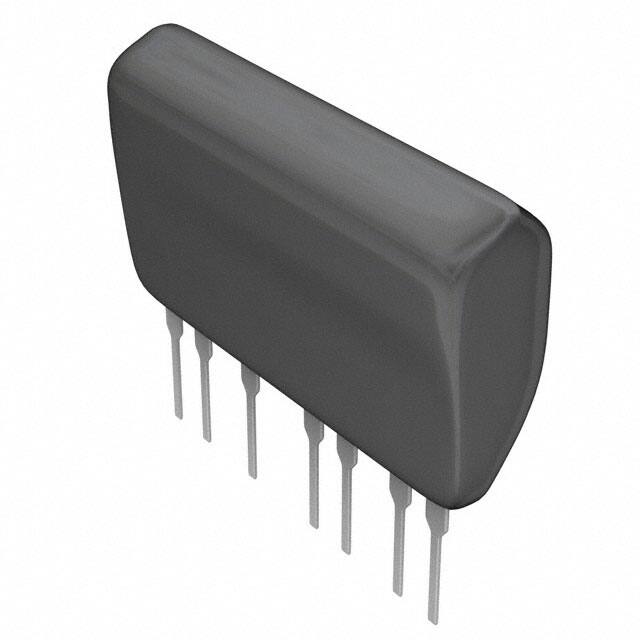

The ROHM Semiconductor BP5710-1 is an AC/DC converter designed for ITE (Commercial) applications. This enclosed module provides a stable 12V DC output with a maximum current of 350mA, delivering a total power of 4W. It operates efficiently at 77% and accepts an input voltage range of 85 to 115 VAC.
The converter features Through Hole mounting for secure integration into circuit boards. Its dimensions are 36.0mm in length, 15.0mm in width, and 24.0mm in height. The operating temperature range is -20°C to 80°C, with derating considered. Load and line regulation are both maintained at 150mV, ensuring consistent performance.
This AC/DC converter is suitable for various commercial applications requiring a reliable power conversion solution. Its specifications make it a practical choice for designs needing a specific DC voltage from an AC source within the specified input range.
The BP5710-1 accepts 85 to 115 VAC input voltage.
It provides a single 12V output at 350mA.
The converter is rated for 4W output power.
The operating temperature range is -20°C to 80°C with derating.
It comes in an 11-SIP module with 7 leads and uses through-hole mounting.
The converter achieves 77% efficiency.
Line regulation is 150mV and load regulation is 150mV.
