| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

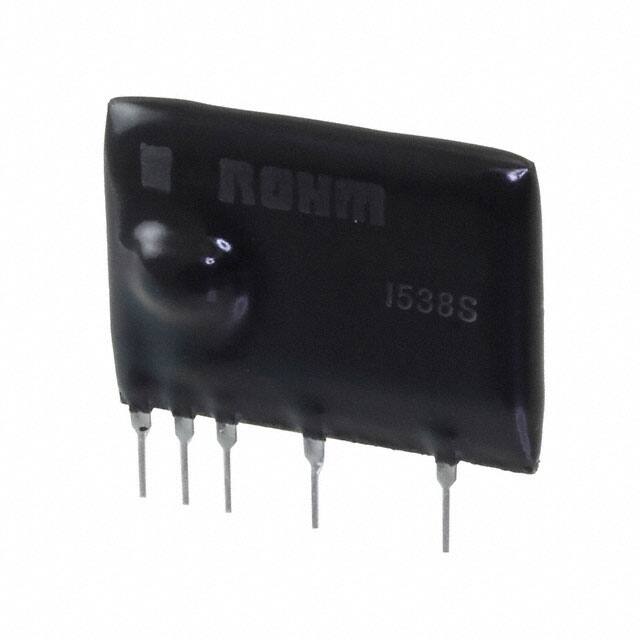

This ROHM Semiconductor BP5090-12 is a 3W AC/DC converter featuring an enclosed package and through-hole mounting. It operates with an input voltage range of 80 to 138 VAC and delivers a current of 200mA. The converter offers an adjustable output and is suitable for ITE (Commercial) applications.
Key specifications include a power rating of 3 Watts, a single output, and dimensions of 26.5mm in length, 10.0mm in width, and 21.5mm in height. The operating temperature range is -20°C to 85°C with derating. The package is an 8-SIP module with 5 leads.
This component is RoHS3 compliant and has an MSL rating of 1 Unlimited. Its compact size and adjustable output make it a versatile choice for various power supply designs requiring a reliable AC to DC conversion.
80 to 138 VAC.
8-SIP Module, 5 Leads.
-20°C to 85°C with derating.
200mA.
3W.
Through Hole.
Yes, it features adjustable output.
