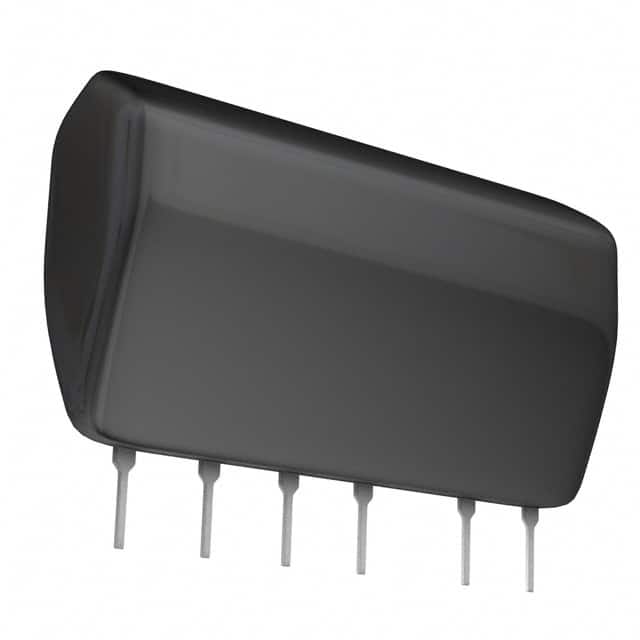

The Rohm Semiconductor BP5047A24 is an enclosed AC DC converter designed for ITE (Commercial) applications. It features a single output of 24V with a maximum current of 150mA, delivering a total power of 4W.
The input voltage range for this converter is 176 to 253 VAC. Key electrical specifications include an efficiency of 78%, line regulation of 50mV, and load regulation of 50mV.
This component is mounted using a Through Hole method and comes in a 12-SIP Module, 6 Leads package. Its dimensions are 34.5mm in length, 9.2mm in width, and 19.1mm in height. The operating temperature range is -20°C to 80°C with derating.
The BP5047A24 provides a nominal output voltage of 24V.
The maximum output current for the BP5047A24 is 150mA.
The BP5047A24 accepts an input voltage range of 176 to 253 VAC.
The BP5047A24 can operate within a temperature range of -20°C to 80°C, with derating.
The BP5047A24 is supplied in a 12-SIP Module, 6 Leads package.
The BP5047A24 is designed for Through Hole mounting.
