| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,600 pcs
|
22600 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Frequency | |
| Insertion Loss | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Power Input | |
| Specifications | |
| Storage Temperature | |
| Tape & Reel | |
| VSWR |

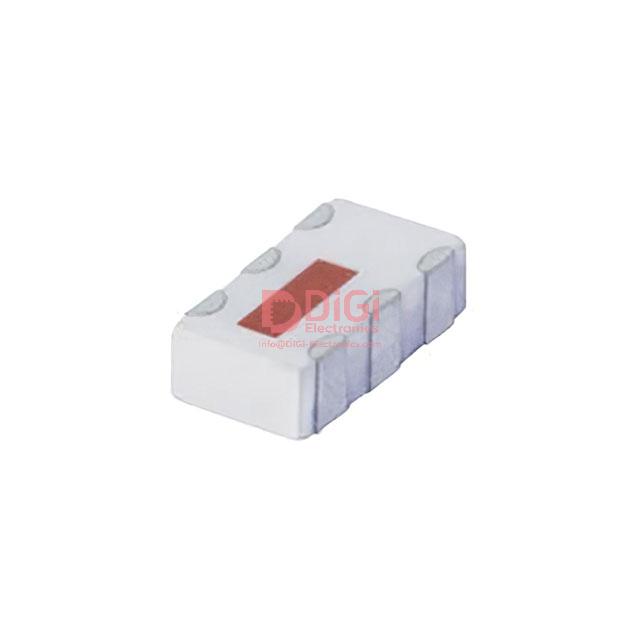

The Mini-Circuits BP2C+ is a 2 Way-0° RF Power Splitter/Combiner designed for surface mount applications. It operates within a frequency range of 810 MHz to 960 MHz.
Key electrical specifications include a typical insertion loss of 0.4 dB and a typical isolation of 25 dB. The device exhibits a typical VSWR of 1.15:1 and a maximum phase unbalance of 3 degrees. It can handle a maximum power input of 1.5W as a splitter, with a maximum internal dissipation of 0.75W.
This power divider is suitable for applications such as cellular, GSM, PDC, and CDMA systems. It is housed in an 8-SOIC package with a surface mount termination style.
The operating temperature range for the BP2C+ is -40°C to 85°C, with a storage temperature range of -65°C to 150°C. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BP2C+ operates from 810 MHz to 960 MHz.
The typical insertion loss is 0.4 dB.
The typical isolation is 25 dB.
The typical VSWR is 1.15:1.
The maximum phase unbalance is 3 degrees.
The operating temperature range is -40°C to 85°C.
The BP2C+ is RoHS3 Compliant.
