| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
503 pcs
|
503 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

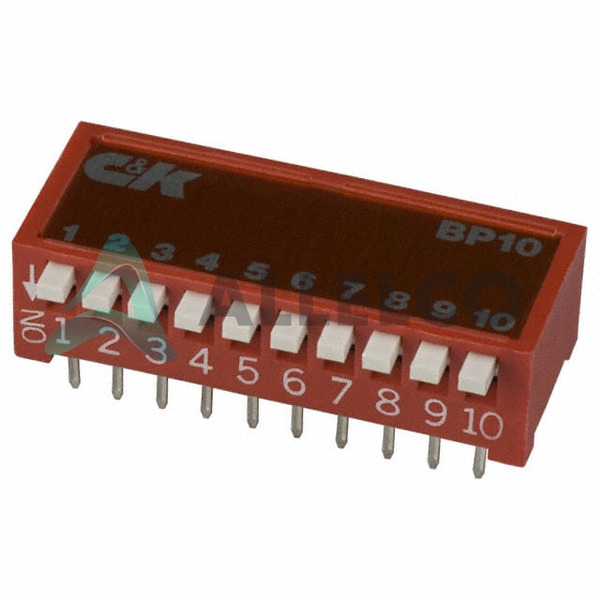

The C&K Components BP10YT is a slide-actuated DIP switch designed for through-hole, right-angle mounting. It features 10 positions with a Single Pole Single Throw (SPST) configuration.
This switch is rated for a maximum current of 100mA at 5VDC. The contact material is phosphor bronze with a tin finish. It operates within a temperature range of -20°C to 60°C and is washable.
The BP10YT has a pitch of 2.54mm (0.100") and a height above the board of 0.315" (8.00mm). It includes epoxy sealed terminals and a tape seal for protection.
This component is suitable for various electronic applications requiring manual switching and configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 5VDC.
The current rating is 100mA.
The BP10YT DIP switch has 10 positions.
The operating temperature range is -20°C to 60°C.
The BP10YT DIP switch uses through hole, right angle mounting.
