| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

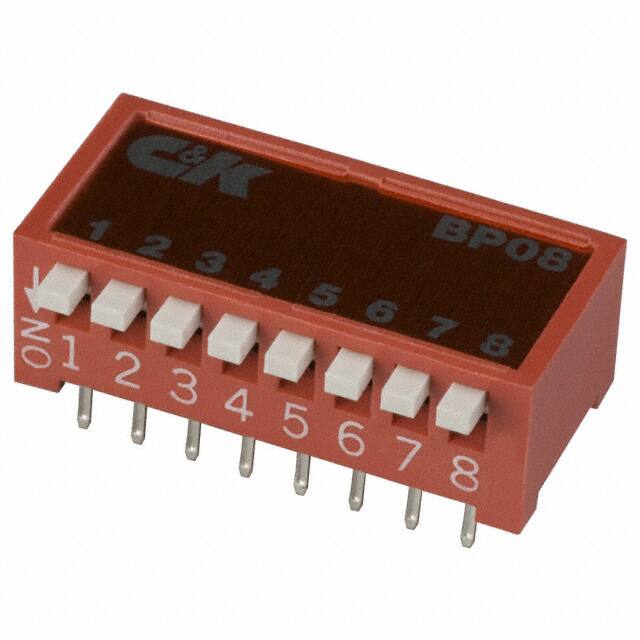

This C&K Components BP08KT is a side-actuated DIP switch with a Single Pole Single Throw (SPST) configuration and 8 positions. It is designed for through-hole, right-angle mounting and features PC pin termination. The switch utilizes phosphor bronze contacts with a gold finish, rated for a maximum of 100mA at 5VDC.
The operating temperature range for this DIP switch is -20°C to 60°C. It is epoxy sealed and tape sealed for protection, and is washable. The actuator type is a standard slide with a raised level.
This component is suitable for various electronic applications requiring manual switching and configuration. Its durable construction and specific contact material and finish ensure reliable performance in its intended operating conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 100mA maximum at 5VDC.
It uses phosphor bronze contacts with a gold finish.
The operating temperature range is -20°C to 60°C.
It is designed for through-hole, right-angle mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
