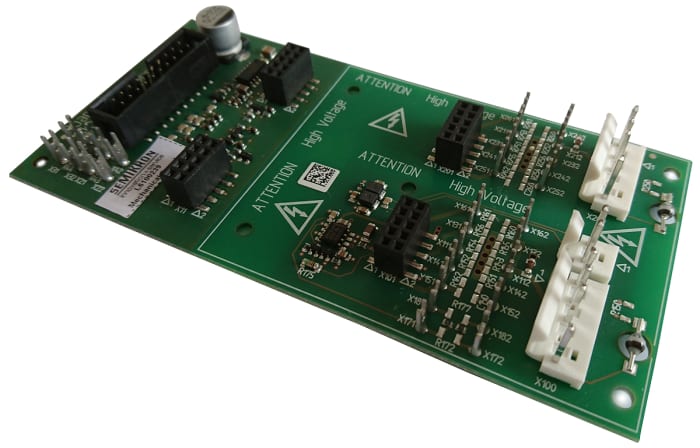

The Semikron Danfoss Board 1 SKYPER 32PRO R is an adaptor board designed for IGBT driver modules, allowing customization for specific IGBT output modules. This MOSFET Gate Driver offers two output channels with a peak output current of 15A.
Key electrical specifications include a minimum supply voltage of 14.4V and a maximum supply voltage of 15.6V. The operating temperature range is from -25°C to 85°C. The board is designed for surface mounting.
This driver board facilitates customization of IGBT switching characteristics through user selection of RGon and RGoff components. It also allows adjustment of monitoring levels and blanking times for the Dynamic Short Circuit Protection function. The SKYPER® 32PRO R variant includes features for soft turn-off and an external error input, along with failure management capabilities. It is compliant with IEC 60747-1 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output current is 15A.
It has 20 pins.
The operating temperature range is -25°C to 85°C.
The supply voltage ranges from 14.4V to 15.6V.
It is a MOSFET Gate Driver.
It complies with IEC 60747-1.
The collector-emitter voltage is 1700V.
