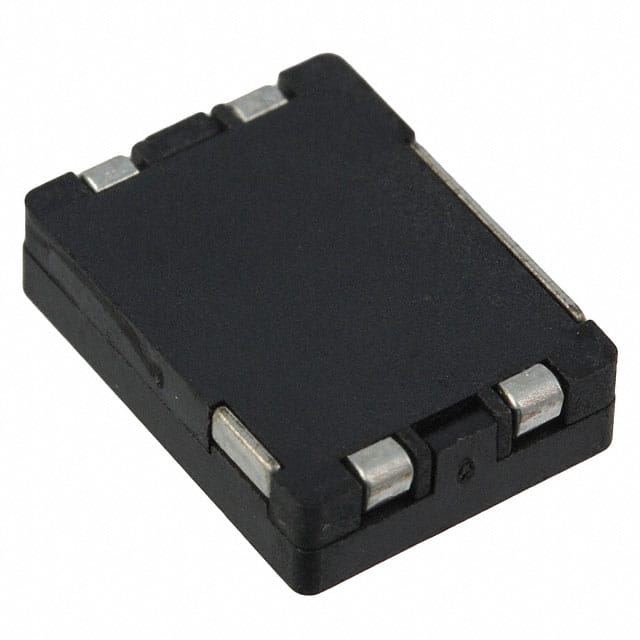

The Murata BNX028-01L is a surface-mount block type LC filter designed for EMI suppression in data lines and power circuits. It offers a capacitance of 47µF with ±20% tolerance and a rated DC voltage of 16V. The filter achieves a minimum insertion loss of 35dB over a frequency range of 30kHz to 1GHz, making it effective for filtering high-frequency noise.
Electrical characteristics include a rated current of 20A, a DC resistance of 0.43mΩ ±0.20mΩ, and a minimum insulation resistance of 1.1MΩ. The filter is a 5th-order low-pass LC network with two channels, providing robust filtering for differential and common-mode noise. The rated voltage drop is 45mV at rated current.
The component is housed in a 4-SMD J-Lead package with dimensions of 12.10mm x 9.10mm x 3.70mm and is compatible with surface-mount assembly. It operates over a temperature range of -40°C to +105°C and can be stored between -55°C and +125°C. The packaging code L indicates taping on a φ178mm reel.
Typical applications include data lines in mobile devices, power supply filtering, and other circuits requiring high current capacity with low DC resistance. The filter is RoHS compliant and has an MSL of 1 (unlimited), though compliance status is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.07 | $6.07 |
| 10+ | $4.95 | $4.95 |
| 25+ | $4.56 | $4.56 |
| 50+ | $4.29 | $4.29 |
| 100+ | $4.04 | $4.04 |
| 400+ | $3.47 | $3.47 |
| 800+ | $3.26 | $3.26 |
| 1,200+ | $3.15 | $3.15 |
| 2,000+ | $3.03 | $3.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated DC voltage is 16V, with a withstanding voltage of 40V DC.
It is a 4-SMD J-Lead surface-mount package.
The operating temperature range is -40°C to +105°C.
It is listed as RoHS3 compliant, but this information is unverified and should be treated as low confidence.
The capacitance is 47µF with a tolerance of ±20%.
Minimum insertion loss of 35dB over the frequency range of 30kHz to 1GHz.
The rated current is 20A DC.
