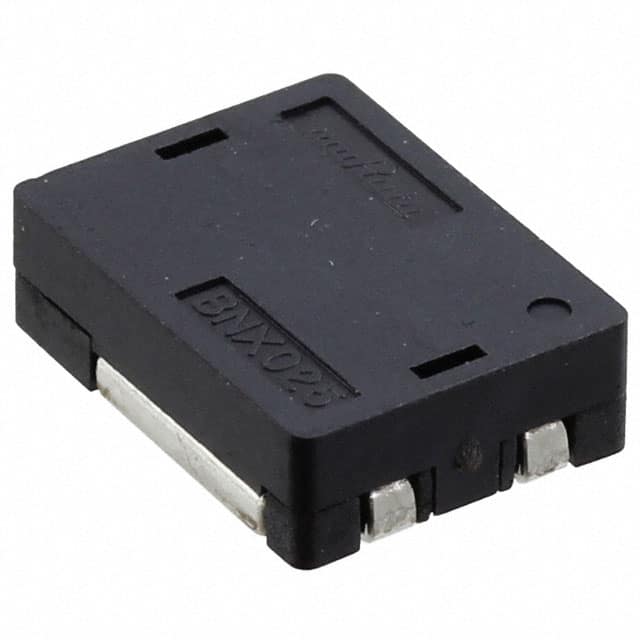

BNX025H01L Murata BNX025H01L is a surface mount LC low-pass EMI filter with 10 µF capacitance, 25 V rated voltage, and 20 A current rating. It provides 35 dB minimum insertion loss from 50 kHz to 1 GHz.
Mfr Part #:

BNX025H01L

Available from 6 distributors
Mfr Name: Murata
Murata
Murata BNX025H01L is a surface mount LC low-pass EMI filter with 10 µF capacitance, 25 V rated voltage, and 20 A current rating. It provides 35 dB minimum insertion loss from 50 kHz to 1 GHz.
✓ Total Stock: 50,630 pcs
$ Price Range: $3.03 - $6.07

BNX025H01L Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BNX025H01L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Capacitance
Current
ESD Protection
Filter Order
Height
Insulation Resistance
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Technology
Type
Values
Voltage
Width
View Similar Products (0)

BNX025H01L Description

Short technical summary and product information.

The Murata BNX025H01L is a surface mount block type EMIFIL, a low-pass LC filter designed for automotive electronics applications. It is part of the BNX02H01 series qualified to AEC-Q200 standard.



This filter offers a capacitance of 10 µF with ±15% tolerance, rated DC voltage of 25 V, and a withstanding voltage of 62.5 V DC. It can handle a continuous current of 20 A (derated with temperature) and features a low DC resistance of 0.43 mΩ ±0.20 mΩ. The insertion loss is 35 dB minimum across the frequency range of 50 kHz to 1 GHz.



The component is housed in a 4-SMD, No Lead package with dimensions 12.10 mm x 9.10 mm x 3.70 mm. It is supplied in tape and reel packaging (178 mm reel) with packaging code 'L'. The operating temperature range is -55°C to +125°C.



This filter is AEC-Q200 qualified and is RoHS3 compliant, REACH unaffected, with MSL level 1 (unlimited). It is designed for automotive electronic systems requiring EMI suppression.

BNX025H01L Quick Information

Product Type: EMI Filter (LC Network)
Series: BNX02H01 Series
Canonical Name: Murata BNX025H01L SMD Block Type EMIFIL, LC Low Pass Filter
Subcategory: LC Low Pass Filter

BNX025H01L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BNX025H01L Estimated Pricing

Qty Low High
1+ $6.07 $6.07
10+ $4.95 $4.95
25+ $4.56 $4.56
50+ $4.29 $4.29
100+ $4.04 $4.04
400+ $3.47 $3.47
800+ $3.26 $3.26
1,200+ $3.15 $3.15
2,000+ $3.03 $3.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

BNX025H01L Features

  • AEC-Q200 qualified for automotive applications.
  • 35 dB minimum insertion loss from 50 kHz to 1 GHz.
  • Low DC resistance of 0.43 mΩ.
  • Surface mount 4-SMD, No Lead package.
  • Rated for 20 A continuous current.

BNX025H01L Applications

  • EMI filtering in automotive power lines.
  • Suppresses noise in DC power circuits.
  • Used in engine control units and infotainment systems.
  • Ideal for battery line filtering in vehicles.

BNX025H01L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the BNX025H01L?

25 V DC.

What is the package type of this filter?

4-SMD, No Lead.

What is the operating temperature range?

-55°C to +125°C.

Is the BNX025H01L RoHS compliant?

RoHS3 Compliant (unverified status).

What is the insertion loss specification?

35 dB minimum from 50 kHz to 1 GHz.

What is the rated current?

20 A.

What is the insulation resistance?

50 MΩ minimum.
