Mfr Part #:

BNX005-01

Mfr Name: Murata

The Murata BNX005-01 is a 5th order low pass LC EMI filter designed for data lines in mobile devices. It offers 40dB attenuation from 1MHz to 1GHz, rated for 15A and 50V.

✓ Total Stock: 1,142 pcs

BNX005-01 Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	1,000 pcs On Request	1000 pcs	On Request	1	On Request	On Request	19+	On Request	On Request
Chanetech ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	40 pcs On Request	40 pcs	On Request	1	On Request	On Request	14+	On Request	On Request
HMB Electronics LLC ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BNX005-01 Description

Short technical summary and product information.

The Murata BNX005-01 is a 5th order low pass LC EMI filter designed for data lines in mobile devices. It provides 40dB of attenuation across a frequency range of 1MHz to 1GHz, making it suitable for suppressing high-frequency noise in power and signal lines.

This filter is rated for a continuous current of 15A and a maximum voltage of 50V, allowing it to handle moderate power levels in various applications. It features a two-channel configuration, which is ideal for differential or common-mode filtering in data lines.

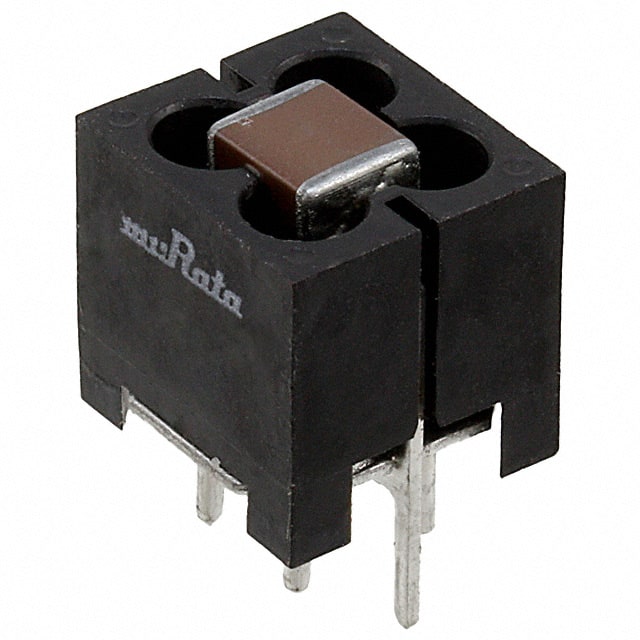

The BNX005-01 uses LC technology and is housed in a through-hole block package with four leads. Its compact dimensions of 12.00mm x 11.00mm x 13.50mm make it suitable for space-constrained PCB layouts. The operating temperature range of -30°C to 85°C ensures reliable performance in typical environmental conditions.

This filter is RoHS3 compliant and has an MSL of 1 (unlimited), indicating no moisture sensitivity restrictions. It is designed for use in mobile devices and other applications where EMI filtering is required.

BNX005-01 Quick Information

Product Type: EMI Filter

Canonical Name: 5th Order Low Pass LC EMI Filter

Subcategory: LC Filter

BNX005-01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

BNX005-01 Features

5th order low pass LC filter.
40dB attenuation from 1MHz to 1GHz.
Rated for 15A and 50V.
Two-channel configuration for data lines.
Through-hole block package with four leads.

BNX005-01 Applications

Ideal for EMI filtering in mobile devices.
Suitable for data line noise suppression.
Used in power supply filtering applications.
Applicable in consumer electronics and communication equipment.

BNX005-01 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the attenuation of the BNX005-01?

The BNX005-01 provides 40dB attenuation from 1MHz to 1GHz.

What is the rated current and voltage of the BNX005-01?

The BNX005-01 is rated for 15A and 50V.

What is the operating temperature range of the BNX005-01?

The operating temperature range is -30°C to 85°C.

Is the BNX005-01 RoHS compliant?

Yes, the BNX005-01 is RoHS3 compliant.

What is the package type of the BNX005-01?

The BNX005-01 comes in a through-hole block package with four leads.

Category	EMIRFI Filters (LC, RC Networks)
Manufacturer Name	Murata
Applications	Data Lines for Mobile Devices
Attenuation Value	40dB
Current	15A
ESD Protection	No
Filter Order	5th
Height	13.50mm
Length	12.00mm
Mounting Type	Through Hole
Number of Channels	2
Operating Temperature	-30°C ~ 85°C
Technology	LC
Type	Low Pass
Voltage	50V
Width	11.00mm
