| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Current | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Technology | |
| Type | |
| Voltage | |
| Width | |
| Withstanding Voltage |

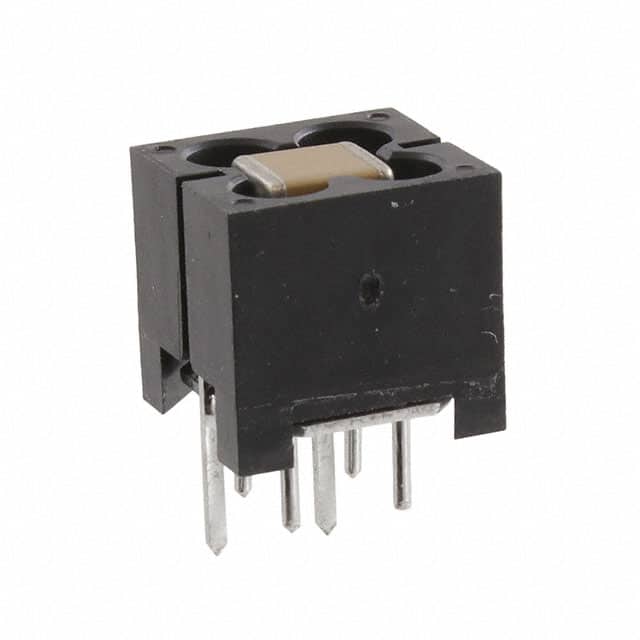

The Murata BNX003-11 is a 5th order low pass LC filter designed for EMI suppression in power and data lines. It is a through-hole component housed in a block, 4-lead package measuring 12.00mm x 11.00mm with a height of 12.50mm.
This filter is rated for a voltage of 150V and a continuous current of 10A. It provides a minimum insertion loss of 40dB across a frequency range of 5 MHz to 1 GHz, making it effective for attenuating high-frequency noise. The maximum drop voltage at rated current is 100 mV, and the withstanding voltage is 375V.
The BNX003-11 is suitable for use in consumer, industrial, and medical equipment applications. It operates over a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.47 | $7.47 |
| 10+ | $6.10 | $6.10 |
| 25+ | $5.62 | $5.62 |
| 50+ | $5.29 | $5.29 |
| 100+ | $4.98 | $4.98 |
| 300+ | $4.52 | $4.52 |
| 500+ | $4.32 | $4.32 |
| 1,000+ | $4.06 | $4.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The rated voltage is 150V and the rated current is 10A.
The minimum insertion loss is 40dB from 5 MHz to 1 GHz.
It is a through-hole mount in a Block, 4 Lead package.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
