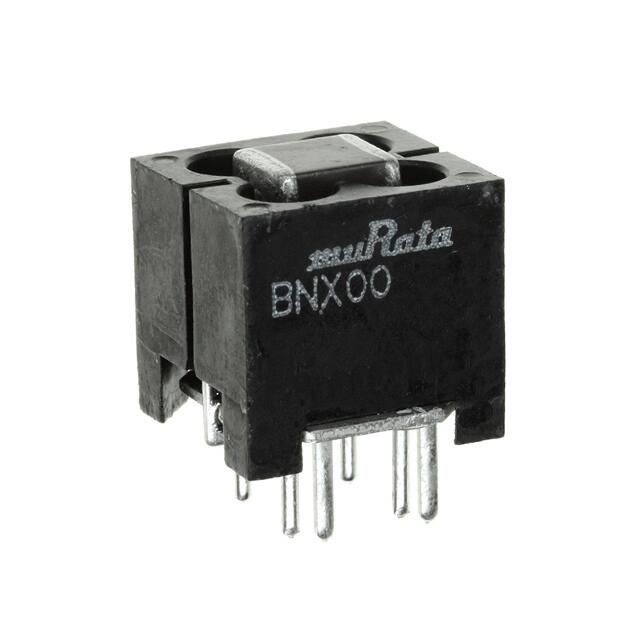

BNX003-01 BNX003-01 is a 5th order low pass LC EMI filter from Murata. It offers 40dB attenuation from 5MHz to 1GHz, rated at 150V and 10A.
Mfr Part #:

BNX003-01

Available from 1 distributors
Mfr Name: Murata
Murata
BNX003-01 is a 5th order low pass LC EMI filter from Murata. It offers 40dB attenuation from 5MHz to 1GHz, rated at 150V and 10A.
✓ Total Stock: 1,000 pcs

BNX003-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BNX003-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Current
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Technology
Type
Voltage
Width
View Similar Products (0)

BNX003-01 Description

Short technical summary and product information.

The BNX003-01 is a 5th order low pass LC EMI filter designed by Murata for suppressing conducted noise on power and signal lines. It provides 40dB of attenuation across a frequency range of 5MHz to 1GHz, making it suitable for reducing electromagnetic interference in electronic systems.



This filter is rated for a maximum voltage of 150V and a continuous current of 10A. It employs LC (inductor-capacitor) technology to achieve its filtering characteristics. The component is housed in a through-hole block package with 4 leads, offering robust mechanical mounting for industrial and consumer applications.



Designed for data lines in mobile devices, the BNX003-01 can also be applied in other DC power line filtering scenarios where high current and moderate voltage are present. Its compact block form factor simplifies PCB layout and assembly.

BNX003-01 Quick Information

Product Type: EMI/RFI Filter
Canonical Name: BNX003-01 Murata 5th Order Low Pass LC EMI Filter
Subcategory: LC Network Filter

BNX003-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

BNX003-01 Features

  • 5th order low pass LC filter.
  • 40dB attenuation from 5MHz to 1GHz.
  • Rated for 150V and 10A operation.
  • Through hole block package with 4 leads.
  • Designed for data line filtering.

BNX003-01 Applications

  • EMI suppression in mobile device data lines.
  • DC power line noise filtering.
  • Industrial equipment interference reduction.
  • Consumer electronics power supply filtering.

BNX003-01 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the attenuation of the BNX003-01?

The BNX003-01 provides 40dB attenuation from 5MHz to 1GHz.

What is the voltage and current rating of the BNX003-01?

The BNX003-01 is rated for 150V and 10A.

What is the package type of the BNX003-01?

The BNX003-01 comes in a through hole block package with 4 leads.

What is the operating temperature range of the BNX003-01?

The BNX003-01 operates from -30°C to 85°C.

Is the BNX003-01 RoHS compliant?

The BNX003-01 is listed as RoHS3 compliant.
