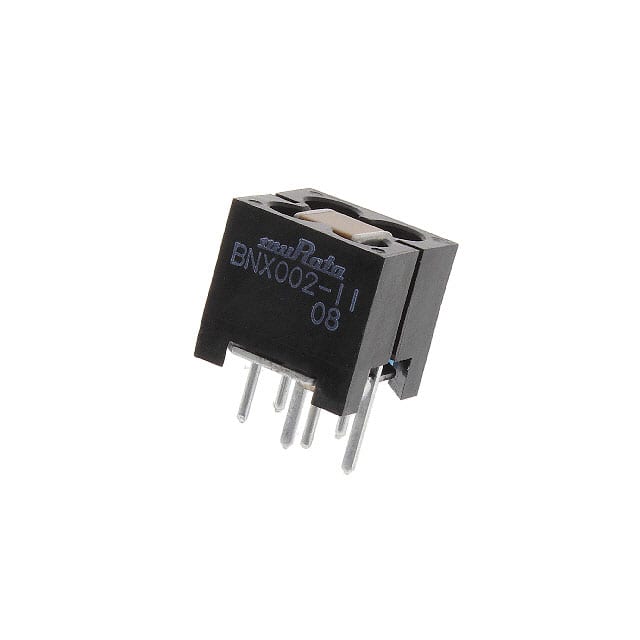

BNX002-11 The Murata BNX002-11 is a low pass EMI suppression filter block with 5th order LC technology. It offers 40dB minimum attenuation from 1MHz to 1GHz, rated for 50V and 10A.
Mfr Part #:

BNX002-11

Available from 3 distributors
Mfr Name: Murata
Murata
The Murata BNX002-11 is a low pass EMI suppression filter block with 5th order LC technology. It offers 40dB minimum attenuation from 1MHz to 1GHz, rated for 50V and 10A.
✓ Total Stock: 3,608 pcs
$ Price Range: $4.32 - $7.96

BNX002-11 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,515 pcs
On Request
1515 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
93 pcs
On Request
93 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BNX002-11 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Current
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Technology
Type
Voltage
Width
View Similar Products (0)

BNX002-11 Description

Short technical summary and product information.

The Murata BNX002-11 is a low pass EMI filter block designed for suppressing electromagnetic interference in data lines for mobile devices. It utilizes a 5th order LC topology to provide effective filtering across a wide frequency range. The filter offers a minimum attenuation of 40dB from 1MHz to 1GHz, ensuring robust noise suppression. It is rated for a voltage of 50V and a current of 10A, making it suitable for moderate power applications. The component is a through-hole mount device housed in a Block, 4 Lead package with dimensions of 12.00mm x 11.00mm x 12.50mm. It operates over a temperature range of -40°C to 85°C. The BNX002-11 does not include ESD protection. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. This filter is intended for use in data line filtering for mobile devices and other applications requiring low pass EMI suppression.

BNX002-11 Quick Information

Product Type: EMI Suppression Filter
Canonical Name: Murata BNX002-11 Low Pass EMI Filter Block
Subcategory: EMI/RFI Filters (LC, RC Networks)

BNX002-11 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BNX002-11 Estimated Pricing

Qty Low High
1+ $7.96 $7.96
10+ $6.49 $6.49
25+ $5.99 $5.99
50+ $5.63 $5.63
100+ $5.30 $5.30
300+ $4.81 $4.81
500+ $4.59 $4.59
1,000+ $4.32 $4.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

BNX002-11 Features

  • 5th order LC low pass filter.
  • Rated for 50V and 10A.
  • 40dB attenuation from 1MHz to 1GHz.
  • Through-hole Block 4 Lead package.
  • Two-channel EMI suppression.

BNX002-11 Applications

  • Data lines for mobile devices.
  • EMI suppression in portable electronics.
  • Low pass filtering for DC power lines.
  • Noise reduction in communication interfaces.

BNX002-11 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the BNX002-11?

The rated voltage is 50V.

What is the package type of the BNX002-11?

The package is Block, 4 Lead.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Is the BNX002-11 RoHS compliant?

Yes, it is listed as RoHS3 Compliant, but this status is unverified.

What is the attenuation of the BNX002-11?

Minimum 40dB attenuation from 1MHz to 1GHz.

What is the rated current of the BNX002-11?

The rated current is 10A.

What is the filter order of the BNX002-11?

The filter order is 5th.
