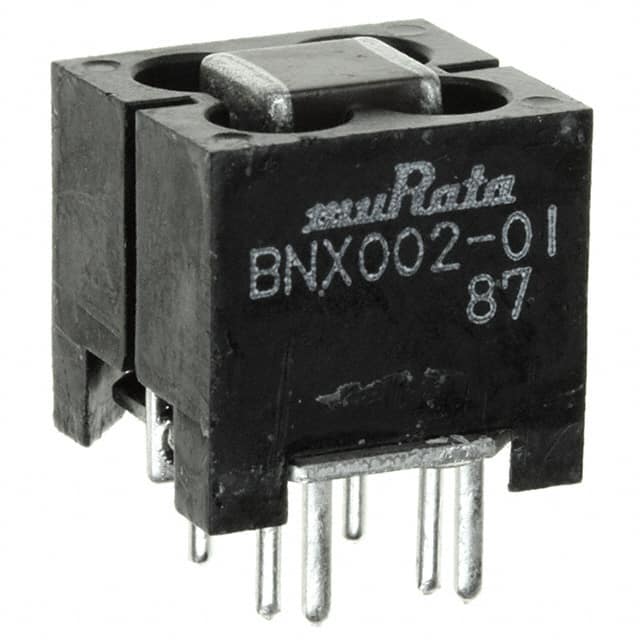

BNX002-01 Murata BNX002-01 is a through-hole LC low pass filter with 40dB minimum insertion loss from 1MHz to 1GHz. Rated at 50V and 10A, it comes in a Block 4 Lead package.
Mfr Part #:

BNX002-01

Available from 6 distributors
Mfr Name: Murata
Murata
Murata BNX002-01 is a through-hole LC low pass filter with 40dB minimum insertion loss from 1MHz to 1GHz. Rated at 50V and 10A, it comes in a Block 4 Lead package.
✓ Total Stock: 160,301 pcs
$ Price Range: $3.41 - $4.53

BNX002-01 Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BNX002-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Current
ESD Protection
Filter Order
Height
Insulation Resistance
Lead Style
Length
Mounting Type
Number of Channels
Operating Temperature
Technology
Type
Voltage
Width
View Similar Products (0)

BNX002-01 Description

Short technical summary and product information.

The Murata BNX002-01 is a Block Type EMIFIL LC combined low pass filter from the BNX00 series. It is a 5th order, 2-channel filter designed to provide 40dB minimum insertion loss across the frequency range of 1MHz to 1GHz.



Rated for 50V DC operation with a withstand voltage of 125V DC, the BNX002-01 can handle a continuous current of 10A. It offers a minimum insulation resistance of 100MΩ and operates over a temperature range of -30°C to 85°C.



This filter is housed in a through-hole Block 4 Lead package measuring 12.00mm x 11.00mm x 13.00mm. It is intended for use in data lines of mobile devices and other applications requiring EMI suppression. The filter is supplied in a box of 100 pieces.

BNX002-01 Quick Information

Product Type: EMI Suppression Filter (LC)
Series: BNX00
Canonical Name: Murata BNX002-01 Block Type EMIFIL LC Low Pass Filter
Subcategory: Block Type EMIFIL

BNX002-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

BNX002-01 Estimated Pricing

Qty Low High
1+ $4.53 $4.53
10+ $4.00 $4.00
25+ $3.71 $3.71
50+ $3.41 $3.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

BNX002-01 Features

  • 5th order LC low pass filter with 2 channels.
  • 40dB minimum insertion loss from 1MHz to 1GHz.
  • Rated for 50V DC and 10A current.
  • Through-hole mounting in Block 4 Lead package.
  • Operating temperature range -30°C to 85°C.

BNX002-01 Applications

  • Ideal for data line filtering in mobile devices.
  • Used for EMI suppression in power supply lines.
  • Suitable for noise filtering in communication equipment.
  • Applicable in consumer electronics requiring low pass filtering.

BNX002-01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of BNX002-01?

The rated voltage is 50V DC.

What is the package type of BNX002-01?

Through-hole, Block 4 Lead package.

What is the operating temperature range of BNX002-01?

-30°C to 85°C.

Is BNX002-01 RoHS compliant?

RoHS3 compliant (unverified, low confidence).

What is the insertion loss of BNX002-01?

40dB minimum from 1MHz to 1GHz.

What is the rated current of BNX002-01?

10A.

What is the filter order of BNX002-01?

5th order.
