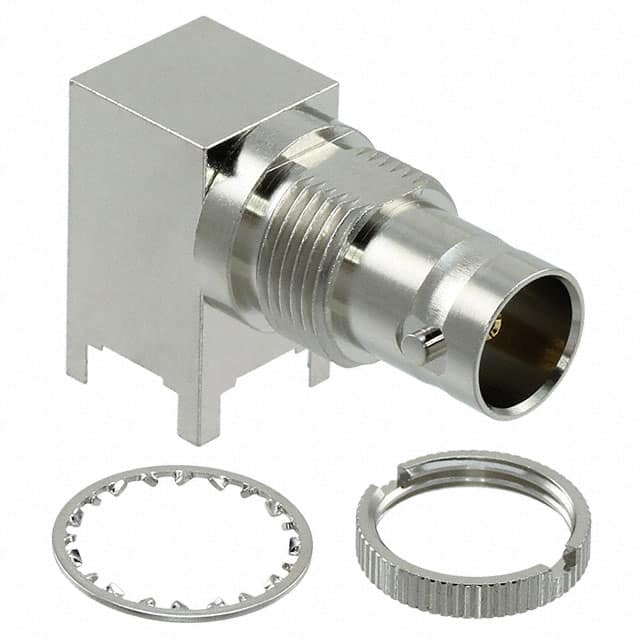

The BNC7T-J-P-HN-RA-BH1 is a 75 Ohm BNC bulkhead jack from Samtec Inc., designed for broadcast video and RF applications. It features a female socket connector with right angle orientation and solder termination for both contact and shield.
This connector supports panel mounting with a bulkhead front side nut and through-hole PCB attachment. The body is made of brass with a silver housing, and the center contact is copper alloy with gold plating. The dielectric material is PTFE.
Electrical characteristics include a characteristic impedance of 75 Ohms and a maximum frequency rating of 12 GHz, optimized for 12G-SDI broadcast video solutions. The connector is RoHS compliant and manufactured with lead-free processing.
75 Ohms.
Panel mount, through hole, right angle with bulkhead front side nut.
12 GHz.
Solder for both contact and shield.
Yes, RoHS3 compliant and manufactured with lead-free processing.
