Mfr Part #:

BMI160

Mfr Name: Bosch

The Bosch BMI160 is a 6-axis Inertial Measurement Unit (IMU) combining an accelerometer and gyroscope. It offers I2C and SPI interfaces for versatile integration.

✓ Total Stock: 7,222 pcs

$ Price Range: $1.50

BMI160 Available from 5 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Rayichip ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	23+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	122 pcs On Request	122 pcs	On Request	1	On Request	On Request	19+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	94 pcs On Request	94 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	6 pcs On Request	6 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BMI160 Description

Short technical summary and product information.

The Bosch BMI160 is an advanced 6-axis Inertial Measurement Unit (IMU) designed for motion sensing applications. It integrates both an accelerometer and a gyroscope, providing comprehensive motion data.

This IMU supports dual interfaces, I2C and SPI, allowing for flexible communication with microcontrollers and other system components. It operates within a supply voltage range of 1.71V to 3.6V and is rated for an operating temperature range of -40°C to 85°C, making it suitable for a variety of environmental conditions.

The BMI160 is available in a 14-LGA package, designed for surface mounting. Its compact size and robust performance characteristics make it an ideal choice for embedded systems requiring precise motion tracking and orientation sensing.

BMI160 Quick Information

Product Type: IMU (Inertial Measurement Unit)

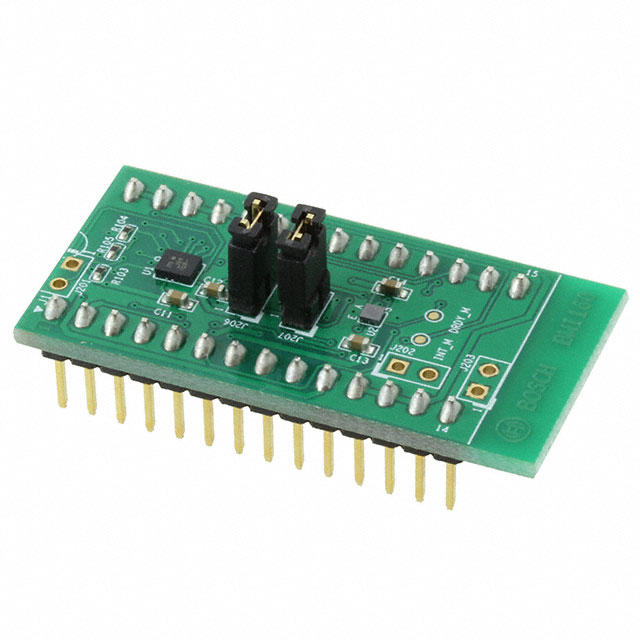

Canonical Name: BMI160 Accelerometer, Gyroscope, 6 Axis Sensor Evaluation Board

Subcategory: Accelerometer, Gyroscope, 6 Axis

BMI160 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BMI160 Estimated Pricing

Qty	Low	High
1+	$1.50	$1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

BMI160 Features

6-axis IMU with accelerometer and gyroscope.
Supports I2C and SPI interfaces.
Wide operating voltage from 1.71V to 3.6V.
Operates from -40°C to 85°C.
Compact 14-LGA surface mount package.

BMI160 Applications

Ideal for motion tracking systems.
Suitable for orientation sensing.
Used in consumer electronics devices.
Applicable for robotics and automation.

BMI160 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the BMI160?

The BMI160 operates within a temperature range of -40°C to 85°C.

What communication interfaces does the BMI160 support?

The BMI160 supports I2C and SPI interfaces.

What type of sensor is the BMI160?

The BMI160 is a 6-axis sensor that includes an accelerometer and a gyroscope.

How is the BMI160 mounted?

The BMI160 is designed for surface mounting.

What is the supply voltage range for the BMI160?

The BMI160 operates with a supply voltage ranging from 1.71V to 3.6V.

What is the package type for the BMI160?

The BMI160 is available in a 14-LGA package.

Category	Motion Sensors - IMUs (Inertial Measurement Units)
Manufacturer Name	Bosch
Lead Spacing	2.5 mm
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
Output Type	I2C, SPI
Sensing Range	±2g, 4g, 8g, 16g, ±125°/sec, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec
Sensor Type	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	14-LGA (2.5x3)
Voltage Supply	1.71V ~ 3.6V
