| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,632 pcs
|
4632 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,697 pcs
|
3697 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
325 pcs
|
325 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 15:15:08 |
| Category | |
| Manufacturer Name | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Plating | |
| Shelf Life | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

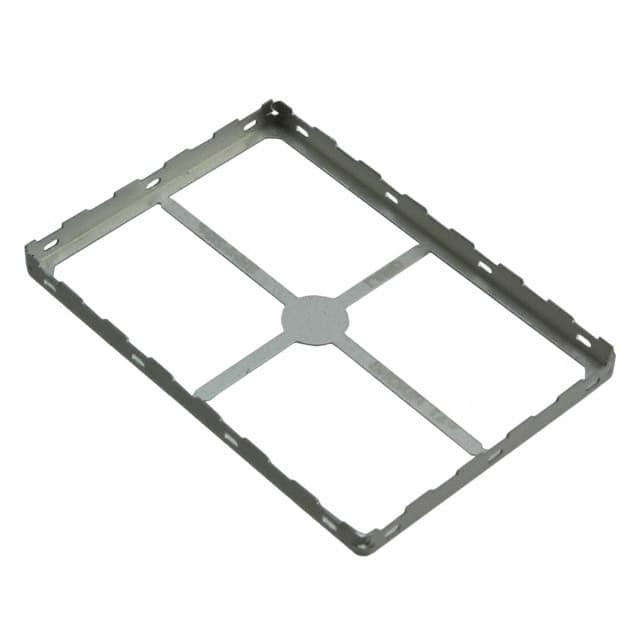

This Laird Technologies BMI-S-210-F is a frame component for a two-piece board level shield system. It is constructed from CRS (Cold Rolled Steel) with a Matte Tin plating, offering a plating thickness between 1.25 and 5.00 microns. The shield frame has a typical flatness/coplanarity of less than 0.10 mm.
Key dimensions include a length of 44.00mm (1.732 inches), a width of 30.50mm (1.201 inches), and a height of 3.00mm (0.118 inches). The base material thickness is 0.20mm. This component is designed for surface mount applications and is packaged on tape and reel, with 370 parts per reel.
Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. It is also REACH unaffected and Lead Free. The typical shelf life is 6-12 months, with recommended storage temperatures between 10°C and 25°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The dimensions are 1.201 inches (30.50 mm) in width and 1.732 inches (44.00 mm) in length.
It is made from cold rolled steel (CRS).
Matte Tin plating.
Less than 0.10 mm.
6 to 12 months.
Yes, it is RoHS3 compliant.
Tape and reel, with 370 parts per reel.
