| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,135 pcs
|
1135 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Brand Category | |
| Current | |
| Factory Pack Quantity | |
| Features | |
| Height | |
| Interface Type | |
| Length | |
| Maximum Operating Temperature | |
| Minimum Operating Temperature | |
| Operating Temperature | |
| Output Type | |
| Product Type | |
| Range ° | |
| Resolution | |
| Sensitivity (LSB | |
| Storage Temperature | |
| Subcategory | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

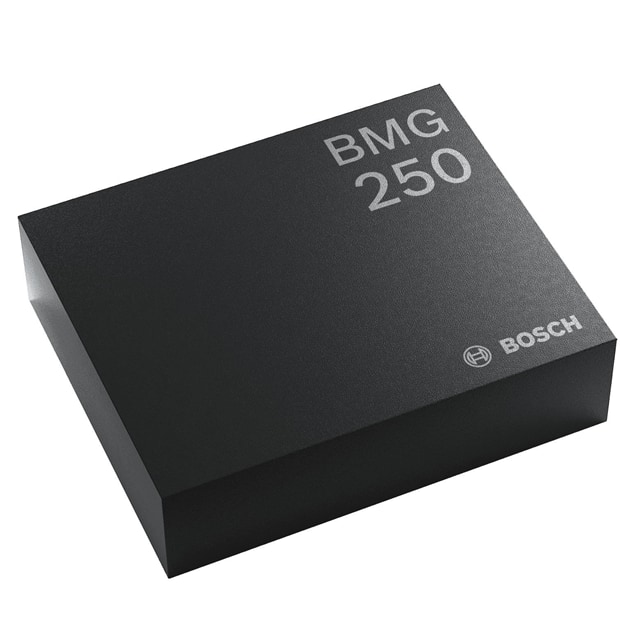

The Bosch BMG250 is a low-power, triaxial gyroscope designed for motion sensing applications. This digital gyroscope features an I2C and SPI interface, allowing for flexible integration into various embedded systems.
Key electrical specifications include a supply voltage range of 1.71V to 3.6V and an operating current of 850 µA. The BMG250 offers a selectable angular rate range from ±125 Deg/S to ±2000 Deg/S, with a sensitivity of 16.4 LSB/(Deg/S) at its lowest range. Its bandwidth can be adjusted from 25Hz to 3200Hz.
This gyroscope operates within a temperature range of -40°C to 85°C. It is housed in a compact 14-LGA package with dimensions of 3mm x 2.5mm x 0.83mm, making it suitable for space-constrained designs. The BMG250 is supplied on a reel.
Features such as adjustable bandwidth and selectable scale enhance its versatility. The built-in power management unit contributes to its low-power operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BMG250 gyroscope operates within a supply voltage range of 1.71V to 3.6V.
The BMG250 gyroscope can operate in temperatures ranging from -40°C to 85°C.
The BMG250 gyroscope is supplied in a 14-LGA package.
The BMG250 gyroscope supports both I2C and SPI communication interfaces.
The BMG250 gyroscope has a selectable angular rate range from ±125 Deg/S up to ±2000 Deg/S.
