| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,918 pcs
|
7918 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | 1 | On Request | On Request | On Request | On Request | |
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Average Current Consumption (Typical @ 1 Hz data refresh rate (H, P, T) | |
| Average Current Consumption (Typical @ 1 Hz data refresh rate (H, T) | |
| Average Current Consumption (Typical @ 1 Hz data refresh rate (P, T) | |
| Humidity Range | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Operating Voltage (Minimum/Maximum) | |
| Output | |
| Output Type | |
| Package Description | |
| Pressure Operation Range | |
| Response Time | |
| Sensor Type | |
| Supplier Device Package | |
| Voltage |

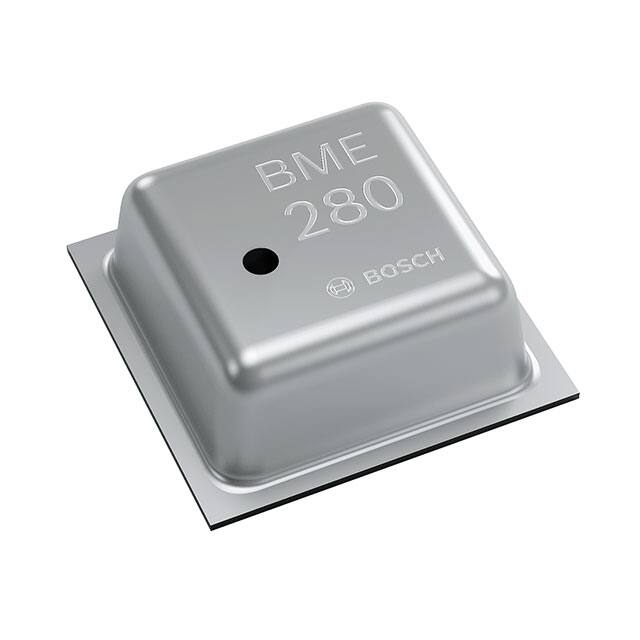

The Bosch BME280 is an integrated environmental sensor designed for mobile applications and wearables where size and low power consumption are critical. This 3-in-1 sensor combines high-linearity and high-accuracy sensors for humidity, barometric pressure, and temperature measurements.
Key electrical specifications include a supply voltage range of 1.71V to 3.6V and support for both I²C and SPI interfaces. It boasts low average current consumption, with typical values of 1.8 μA (H, T), 2.8 μA (P, T), and 3.6 μA (H, P, T) at a 1Hz data refresh rate.
The operating temperature range is -40°C to 85°C, with a humidity measurement range of 0 to 100% RH and an accuracy of ±3%. The pressure sensing capability covers 300 to 1100 hPa. The sensor features a fast response time of 1 second.
Packaged in an 8-pin LGA with dimensions of 2.5 x 2.5 x 0.93 mm³, the BME280 is designed for surface mounting. Its robust design ensures long-term stability and high EMC robustness, making it suitable for applications requiring precise environmental monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BME280 sensor operates with a supply voltage between 1.71V and 3.6V.
The BME280 sensor can operate in temperatures ranging from -40°C to 85°C.
The BME280 sensor can measure relative humidity, barometric pressure, and temperature.
The BME280 supports both I²C and SPI communication interfaces.
The BME280 sensor has a humidity accuracy of ±3% RH.
The BME280 is available in an 8-LGA (2.5x2.5) or 8-VFLGA package, designed for surface mounting.
