| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Antenna Type | |
| Automotive Grade | |
| Current | |
| Data Rate | |
| Dimensions | |
| Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Memory Size | |
| Military Grade | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supply Voltage | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

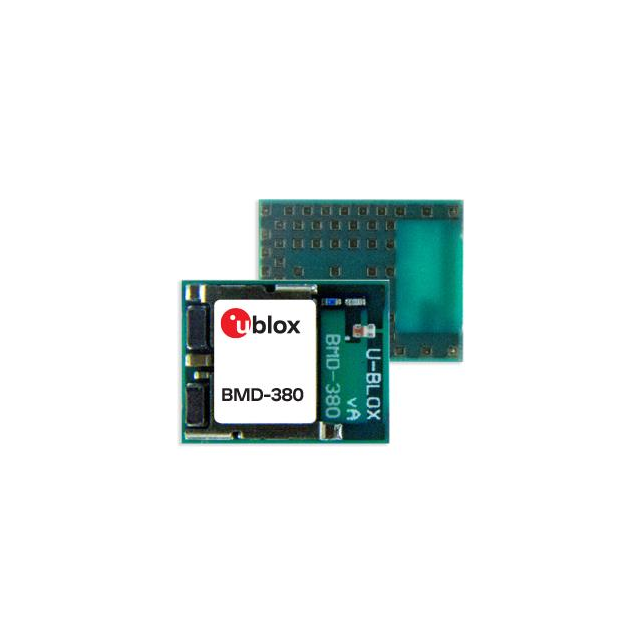

The BMD-380-A-R from u-blox is a versatile RF Transceiver Module designed for wireless communication applications. It integrates support for Bluetooth v5.1 (BLE), Thread, and Zigbee protocols, making it suitable for a wide range of IoT and connectivity solutions.
This module operates within the 2.36GHz to 2.5GHz frequency band, offering a data rate of up to 2Mbps. Key electrical specifications include a supply voltage range of 1.7V to 3.6V, transmitting current consumption of 4.8mA to 32.7mA, and receiving current consumption of 4.6mA to 9.9mA. It features an output power of 8dBm and a receiver sensitivity of -96dBm.
The BMD-380-A-R is built around the ARM Cortex M4 core and utilizes the nRF52840 IC. It provides various serial interfaces including ADC, GPIO, I2C, I2S, PDM, PWM, SPI, UART, and USB, facilitating integration into complex systems. The module has a memory size of 1MB Flash and 256kB RAM.
Packaged in a 63-SMD Module format, it is designed for surface mount applications. The module has dimensions of 9.5 mm x 7.5 mm x 1.5 mm, with a package height of 1.5 mm. The operating temperature range is -40°C to 85°C (TA). The antenna is integrated and chip-type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 1.7 V to 3.6 V.
The package is a 63-SMD Module.
The operating temperature is -40°C to 85°C.
It supports Bluetooth v5.1, Thread, and Zigbee.
The output power is 8 dBm.
The receiver sensitivity is -96 dBm.
The frequency range is 2.36 GHz to 2.5 GHz.
