| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Approval Agency | |
| Current | |
| Current - Receiving | |
| Current - Transmitting | |
| Data Rate | |
| Dimensions | |
| Frequency | |
| Frequency Range | |
| HTS Code | |
| Height | |
| Length | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Shielding | |
| Voltage | |
| Width |

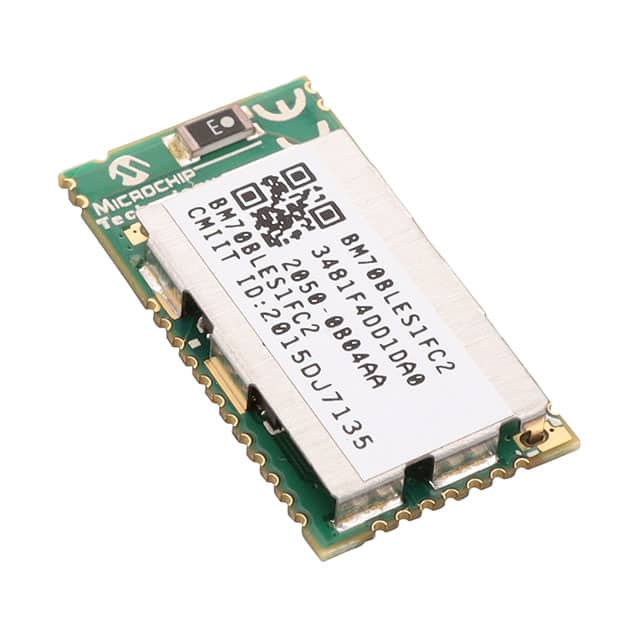

This Microchip Technology BM70BLES1FC2-0B04AA is a Bluetooth Low Energy (BLE) module designed for wireless communication applications. It features a compact, shielded design with an integrated chip antenna, making it suitable for space-constrained projects. The module operates across the 2.4 GHz frequency band and supports Bluetooth v5.0 protocol.
Key electrical specifications include an output power of 0 dBm and a sensitivity of -90 dBm. It operates within a supply voltage range of 1.9V to 3.6V, with typical current consumption of 3.2 mA for receiving and 3.3 mA for transmitting. The module supports serial interfaces such as I²C, SPI, and UART, and offers a data rate of 8.6 Kb/S.
Designed for industrial applications, the BM70BLES1FC2-0B04AA has an operating temperature range of -40°C to +85°C. It is housed in a 33-SMD Module package and utilizes a Surface Mount (SMD/SMT) mounting type. The dimensions are 12 mm x 15 mm x 2.4 mm. This module is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.9V to 3.6V.
The operating temperature range is -40°C to +85°C.
The output power is 0 dBm.
The sensitivity is -90 dBm.
It requires Surface Mount (SMD/SMT) mounting.
The dimensions are 12 mm x 15 mm x 2.4 mm.
It supports I²C, SPI, and UART serial interfaces.
