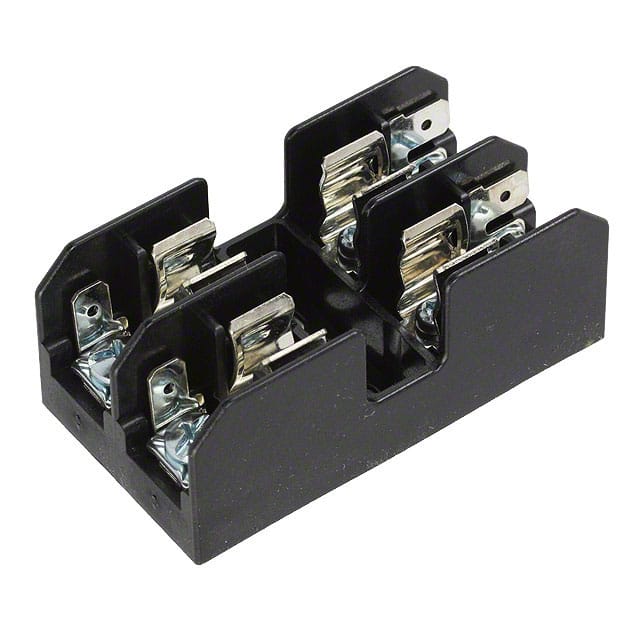

The Eaton Bussmann BM6032PQ is a 2-pole Class M supplementary fuse block from the BM Series. It is rated for 600V AC and 30A, accommodating 5AG and 13/32" x 1-1/2" (Midget) cartridge fuses with a diameter of 0.394" and length of 1.496" (10mm x 38mm).
The fuse block features a thermoplastic housing with a UL 94V-0 flammability rating, ensuring robust performance in demanding environments. It offers multiple termination options including screw terminal, pressure plate, and quick connect, providing flexibility for various wiring configurations.
Designed for chassis mounting, this fuse block is suitable for use in industrial control panels, power distribution units, and other equipment requiring reliable overcurrent protection. It is UL Recognized under Guide IZLT2, File E14853, and CSA Certified under Class 6225-01, File 47235.
The BM6032PQ is rated for 600V AC and 30A.
The BM6032PQ is a 2-pole fuse block.
It accepts 5AG and 13/32" x 1-1/2" (Midget) cartridge fuses with a diameter of 0.394" and length of 1.496" (10mm x 38mm).
The BM6032PQ is designed for chassis mounting.
It offers screw terminal, pressure plate, and quick connect terminations.
It is UL Recognized (Guide IZLT2, File E14853) and CSA Certified (Class 6225-01, File 47235).
The housing is thermoplastic with a UL 94V-0 flammability rating.
