| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
980 pcs
|
980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

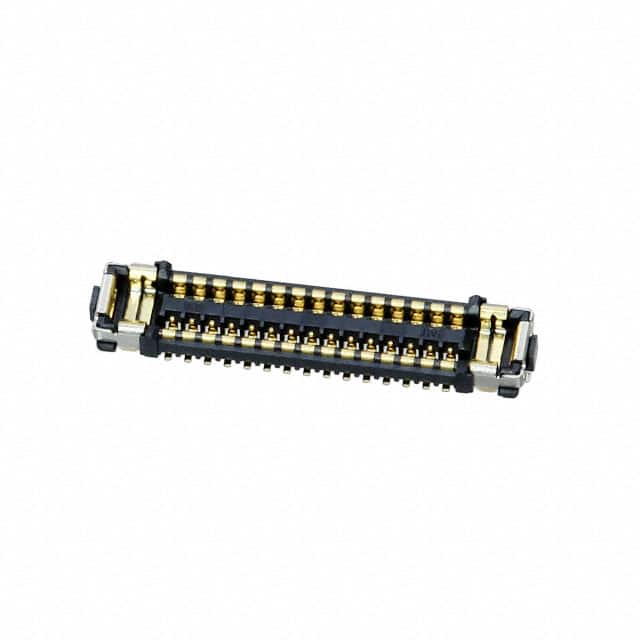

The Hirose Electric BM28B0.6-30DS/2-0.35V(53) is a 30-position receptacle connector with center strip contacts, designed for mezzanine board-to-board applications. It features a 0.35mm pitch and 2 rows, with a mated stacking height of 0.6mm. The connector is surface mount and includes solder retention features for secure attachment. Contacts are gold plated with a thickness of 1.97µin (0.050µm). The height above board is 0.024" (0.61mm). This connector is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is suitable for compact electronic devices requiring high-density interconnections. The BM28 series connectors from Hirose are known for their low profile and high reliability. This specific model is optimized for 0.6mm stacking height. The 30 positions allow for multiple signal or power connections in a compact footprint. The gold contact finish ensures low contact resistance and corrosion resistance. The surface mount design facilitates automated assembly. Solder retention features help maintain alignment during reflow soldering. Typical applications include smartphones, tablets, and other portable electronics where space is at a premium.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
| 10+ | $1.22 | $1.22 |
| 25+ | $1.14 | $1.14 |
| 50+ | $1.09 | $1.09 |
| 100+ | $1.03 | $1.03 |
| 250+ | $0.97 | $0.97 |
| 500+ | $0.92 | $0.92 |
| 1,000+ | $0.75 | $0.75 |
| 2,000+ | $0.72 | $0.72 |
| 3,000+ | $0.95 | $0.95 |
| 5,000+ | $0.92 | $0.92 |
| 7,000+ | $0.90 | $0.90 |
| 10,000+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
0.35mm (0.014 inches).
Surface mount.
Gold with a thickness of 1.97µin (0.050µm).
0.6mm.
Yes, it features solder retention.
2 rows.
