| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

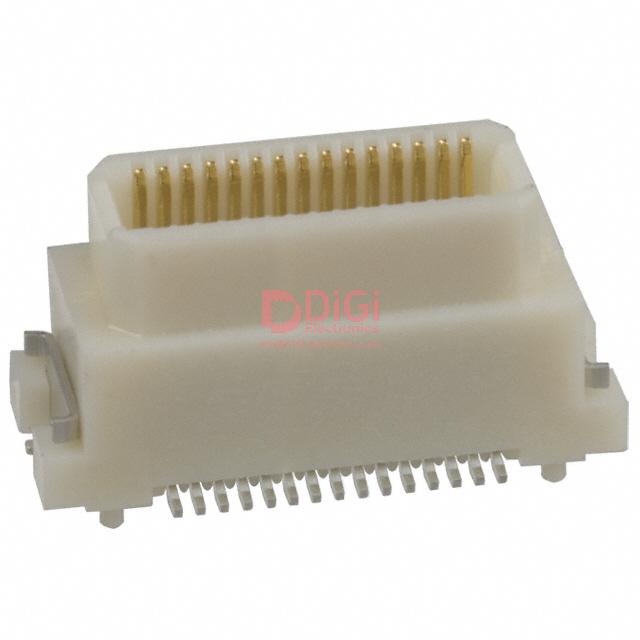

This Hirose Electric connector header, part number DF17(4.0)-30DP-0.5V(51), is part of the DF17 series and is designed for mezzanine (board-to-board) applications. It offers 30 positions with a fine pitch of 0.50mm, making it suitable for high-density electronic designs.
The connector features a surface mount mounting type and gold-plated contacts for reliable electrical connections. The height above the board is 6.30mm, and it supports mating stacking heights of 7mm and 8mm. The outer shroud contacts provide additional mechanical stability and protection.
This component is manufactured by Hirose Electric Co., Ltd. and is categorized under Rectangular Connectors, specifically within the Arrays, Edge Type, Mezzanine (Board to Board) subcategory. It is supplied in a standard package of 1000 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
0.50mm.
Surface mount.
7mm and 8mm.
Gold.
2 rows.
6.30mm.
