| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Storage Temperature Range | |
| Withstanding Voltage |

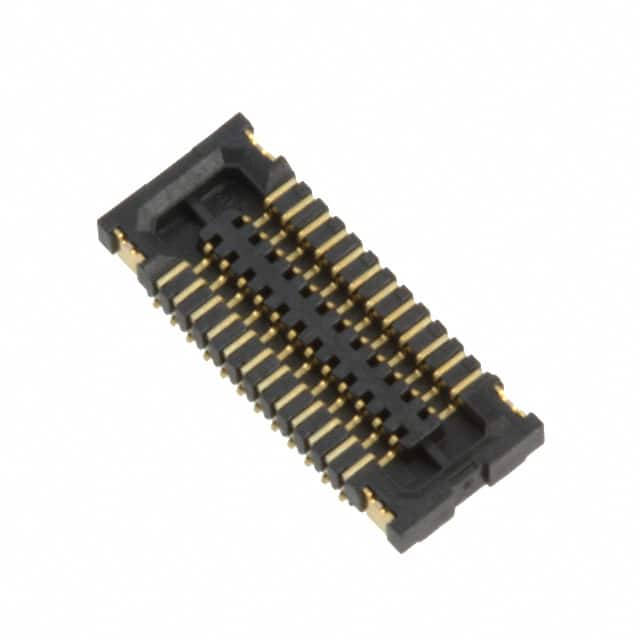

The Hirose BM20B(0.8)-24DS-0.4V(51) is a receptacle connector from the BM20 series, designed for board-to-board and board-to-FPC applications. It features 24 positions arranged in 2 rows with a 0.4mm pitch, enabling high-density mounting. The connector has a mated stacking height of 0.8mm and a height above board of 0.80mm. It is rated for 0.3A current and 30V AC/DC voltage. The operating temperature range is -35°C to 85°C. The connector features gold contact finish with 2.00µin thickness for reliable performance. It includes solder retention features for secure attachment. The surface mount design supports automated assembly. The connector is RoHS3 compliant and has MSL 1 unlimited. It is suitable for compact electronic devices requiring space-saving interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.51 | $1.51 |
| 10+ | $1.28 | $1.28 |
| 25+ | $1.20 | $1.20 |
| 50+ | $1.14 | $1.14 |
| 100+ | $1.09 | $1.09 |
| 250+ | $1.02 | $1.02 |
| 500+ | $0.97 | $0.97 |
| 1,000+ | $0.93 | $0.93 |
| 2,500+ | $0.89 | $0.89 |
| 8,000+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
0.40mm.
0.3A.
30V AC/DC.
Surface mount.
Gold with 2.00µin thickness.
-35°C to 85°C.
