| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,364 pcs
|
4364 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Rated Current | |
| Rated Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Withstanding Voltage |

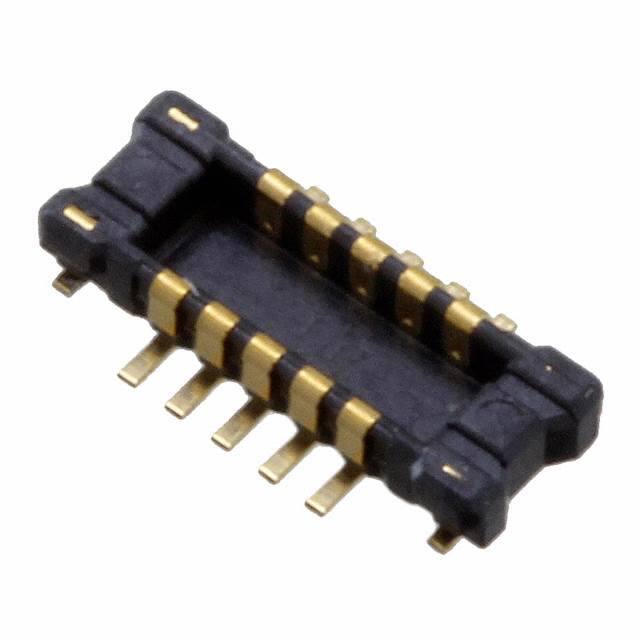

The BM20B(0.8)-10DP-0.4V(51) from Hirose Electric is a 10-position header connector from the BM20 series. It features a 0.4mm pitch and 2 rows of outer shroud contacts, designed for board-to-board and board-to-FPC applications with a mated stacking height of 0.8mm. The connector is surface mount with solder retention features, ensuring secure attachment during reflow soldering. Electrical ratings include 0.3A current and 30V AC/DC voltage. The gold contact finish provides reliable conductivity and corrosion resistance. Operating temperature range is -35°C to 85°C. This connector is suitable for compact electronic devices requiring high-density interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.97 | $0.97 |
| 50+ | $0.93 | $0.93 |
| 100+ | $0.88 | $0.88 |
| 250+ | $0.83 | $0.83 |
| 500+ | $0.79 | $0.79 |
| 1,000+ | $0.75 | $0.75 |
| 2,500+ | $0.70 | $0.70 |
| 8,000+ | $0.65 | $0.65 |
| 16,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
0.40mm.
0.3A.
30V AC/DC.
Surface mount.
-35°C to 85°C.
Gold with 2.00µin thickness.
