| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
628 pcs
|
628 pcs | On Request | 1 | On Request | On Request | 1526+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Rated Current | |
| Rated Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Withstanding Voltage |

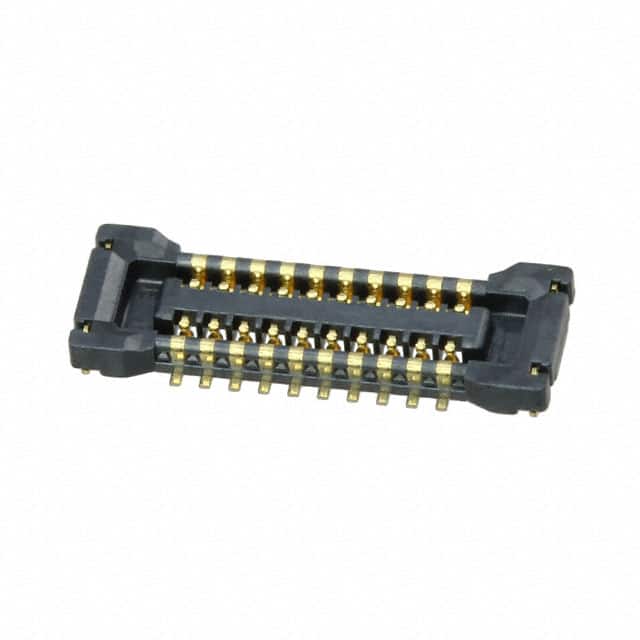

The Hirose BM20B(0.6)-20DS-0.4V(53) is a 20 position, 2 row, 0.4mm pitch surface mount receptacle connector from the BM20 series. It features a mated stacking height of 0.6mm and a height above board of 0.61mm. The connector uses a two point contact system for reliable performance and includes guide ribs for easy mating with a self-alignment range of up to 0.3mm. Dimples in the contacts provide drop and shock resistance, while the debris resisting design helps protect contacts from dust. The molded bottom surface allows for unrestricted PCB pattern layout. The connector is rated for 0.3A current and 30V AC/DC, with an operating temperature range of -35°C to 85°C. It is surface mount with gold contact finish of 2.00µin thickness and features solder retention for secure attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
| 10+ | $1.06 | $1.06 |
| 25+ | $0.99 | $0.99 |
| 50+ | $0.94 | $0.94 |
| 100+ | $0.90 | $0.90 |
| 250+ | $0.84 | $0.84 |
| 500+ | $0.80 | $0.80 |
| 1,000+ | $0.76 | $0.76 |
| 2,000+ | $0.73 | $0.73 |
| 3,000+ | $0.71 | $0.71 |
| 5,000+ | $0.68 | $0.68 |
| 7,000+ | $0.67 | $0.67 |
| 10,000+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
0.40mm (0.016").
0.3A.
30V AC/DC.
Surface mount (SMD).
-35°C to 85°C.
0.6mm.
