BM15B-GHS-TBT(LF)(SN)

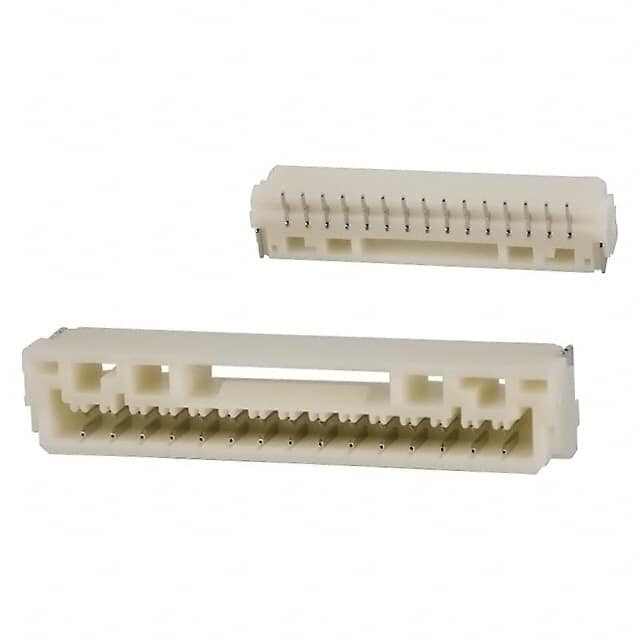

The BM15B-GHS-TBT(LF)(SN) is a 15-position, single-row surface mount header from JST Manufacturing's GH series. It features a 1.25mm pitch and a shrouded 4-wall design with a locking ramp fastening type, providing secure board-to-cable/wire connections. The header is rated for 1A current and 50V voltage, with an operating temperature range of -25°C to 85°C.

The connector uses rectangular outer shroud contacts made of phosphor bronze with a tin finish, and the insulator is made of polyamide (PA9T) with a natural color. It is rated UL94 V-0 for flammability, making it suitable for a variety of electronic applications. The surface mount design with solder termination supports pick and place assembly and solder retention.

The header is designed for board-to-cable/wire applications where a compact, reliable connection is needed. The 1.25mm pitch allows for space-efficient designs in dense PCB layouts. The locking ramp ensures a secure mating with compatible cable connectors, reducing the risk of accidental disconnection.

The component is RoHS3 compliant and has an MSL of 1 (unlimited), indicating no moisture sensitivity restrictions. It is suitable for automated assembly processes, and the solder retention feature helps maintain reliable solder joints during reflow soldering.
