| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,340 pcs
|
2340 pcs | On Request | 1 | On Request | On Request | 2014+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

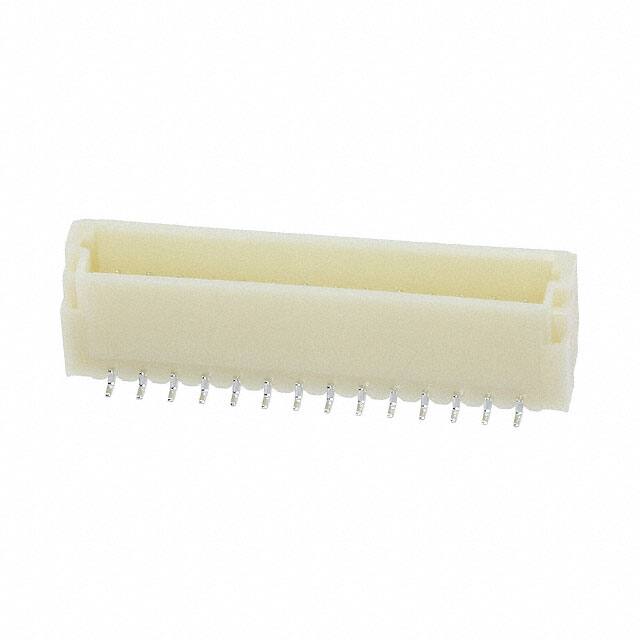

The JST BM14B-SRSS-TBT(LF)(SN) is a 14-position, single-row, 1.00mm pitch surface mount header designed for board-to-cable/wire connections. It features a shrouded 4-wall design with male square pins and a push-pull fastening mechanism, ensuring secure mating.
This connector is rated for 1A current and 50V voltage, with an operating temperature range of -25°C to 85°C. The insulation is made of polyamide (PA) nylon in natural color, with a UL94 V-0 flammability rating. Contacts are copper alloy with a tin finish.
The header includes pick-and-place and solder retention features for automated assembly. It is surface mount with solder termination, making it suitable for compact PCB designs where space is limited.
The pitch is 1.00mm.
It has 14 positions in a single row.
The current rating is 1A.
The voltage rating is 50V.
It is a surface mount (SMD) component with solder termination.
The operating temperature range is -25°C to 85°C.
RoHS3 compliance is indicated but unverified.
