| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,435 pcs
|
2435 pcs | On Request | 1 | On Request | On Request | 2006+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

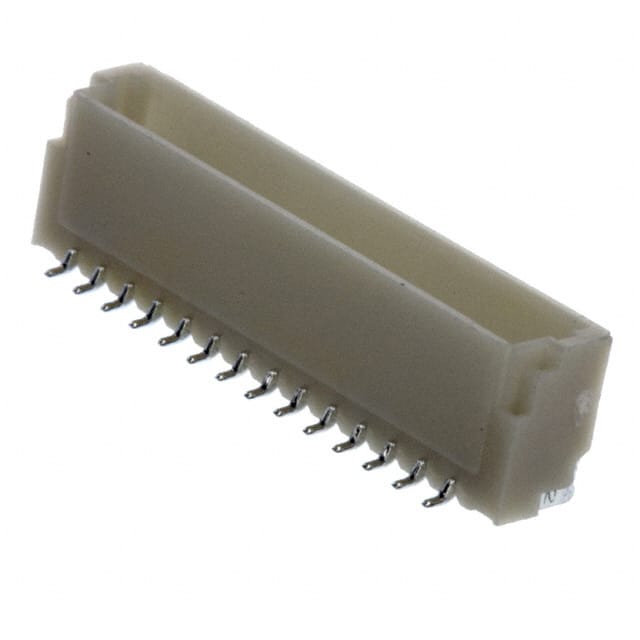

The JST BM14B-SRSS-TB(LF)(SN) is a 14-position, single row, shrouded header from the SRSS series. It features a 1.00mm pitch and male pin contacts made of copper alloy with a tin finish. The connector is designed for board-to-cable/wire applications and uses a push-pull fastening mechanism.
This header is surface mount with solder termination and includes solder retention features for reliable PCB attachment. The insulation is made of polyamide (nylon) with a UL94 V-0 flammability rating and natural color, with an insulation height of 4.25mm. All 14 positions are loaded.
Electrical ratings are 1A current and 50V voltage, with an operating temperature range of -25°C to 85°C. The connector is suitable for compact, low-profile interconnects in various electronic devices.
It has 14 positions in a single row, all loaded.
The pitch is 1.00mm.
The current rating is 1A and the voltage rating is 50V.
It is a surface mount component with solder termination.
The operating temperature range is -25°C to 85°C.
