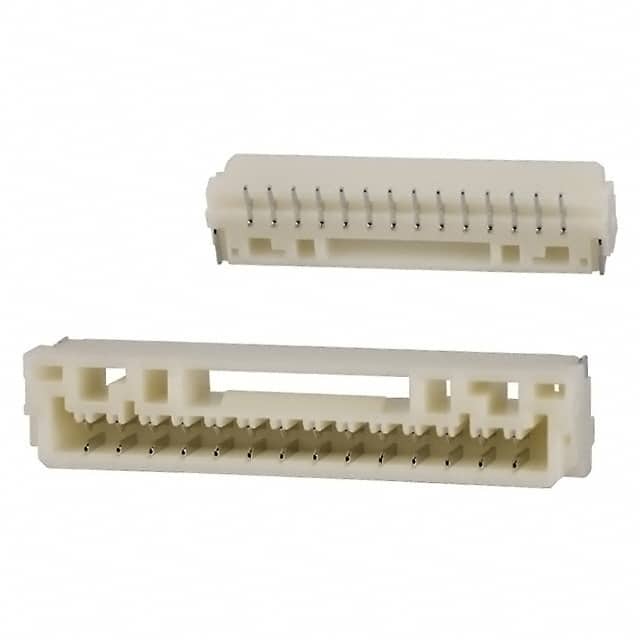

The JST BM14B-GHS-TBT(LF)(SN)(N) is a rectangular connector header designed for board to cable/wire applications. It features 14 positions in a single row with a 1.25mm pitch, making it suitable for compact electronic assemblies. The connector is shrouded with a 4-wall design for contact protection and includes a locking ramp fastening system for secure mating. It is surface mount (SMD) compatible with solder termination and includes pick-and-place and solder retention features for automated assembly.
The insulation is made of Polyamide (PA9T), Nylon 9T in natural color, with an insulation height of 4.05mm. The contacts are phosphor bronze with a tin finish, rectangular in shape, and rated for 1A current and 50V voltage. The operating temperature range is -25°C to 85°C. The material flammability rating is UL94 V-0. This connector is designed for reliable performance in a variety of electronic interconnect applications.
14 positions.
1.25mm.
1A.
50V.
Surface Mount (SMD).
-25°C to 85°C.
Locking Ramp.
